Dura Slope Trench Drain Additional Resources

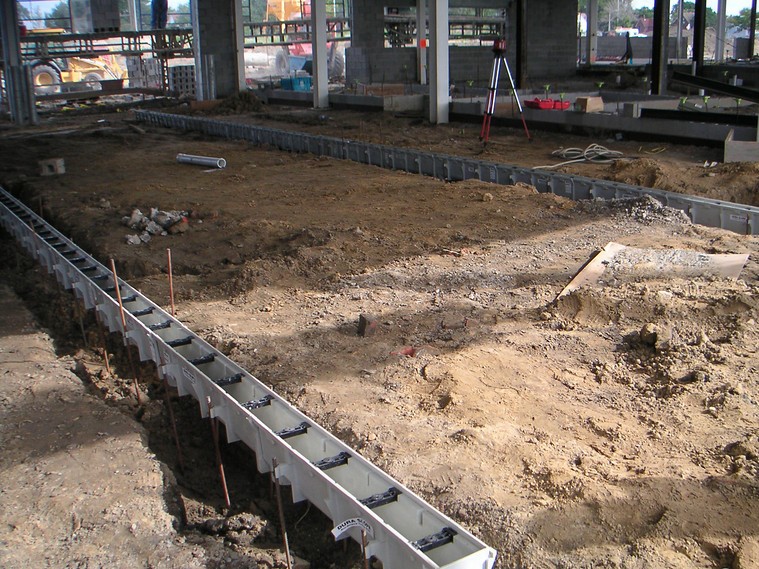

What is the NDS Dura Slope Trench Drain?
NDS Dura Slope is one of two pre-sloped drainage lines offered by NDS. If you've got heavy traffic, the Dura Slope trench drain is a good place to start your search; these heavy-duty, HDPE channels can withstand up to Class D loads when outfitted with the correct grates and a ductile iron collar. The Dura Slope trench drains are perfect for a variety of uses, such as driveways, sports facilities, parking areas, warehouses, loading docks, and pools. These pre-sloped drains are loved for a variety of reasons: engineers love that they have sloping built-in, installers love their lightweight build, and customers love the gorgeous aesthetic the Dura Slope Trench Drains are known for. The Dura Slope™ System has the ability to withstand freeze/thaw cycles and provide chemical resistance, including road salt. Each section of the Dura Slope™ trench drain comes with a blank grate insert that eliminates the use of plywood. Each Dura Slope radius coupling includes a standard grate, which can be used as a blank or as a functioning grate. Grate screws are included with all Dura Slope™ trench drains and radius couplings. LeveLoc™ integral re-bar supports are located at 24” intervals along each side of the channel and contain an internal protruding knob designed to grip #3 or #4 rebar (3/8” – ½”) for easier channel height adjustment during installation. DuraLoc tongue and groove end connect allowing for a precise fit and ensuring straight channel runs, incorporating an integral snap-lock feature that prevents joint movement during channel installation. Each channel section is molded with a bottom outlet allowing for system versatility and ensuring proper drainage. Expansion joints must be provided parallel to each side of the drain run.
Applications for Dura Slope Trench Drains
Recommended applications of the NDS Dura Slope Trench Drain System include:
- Athletic Fields
- Commercial Hardscapes
- Tennis Courts
- Residential Hardscapes
NDS Dura Slope Trench Drain Features
- Available in both neutral and built-in slope of 0.7% channels
- Modular design available in 4 FT lengths
- UV Inhibitors to prevent fading and cracking
- Includes neutral and pre-sloped sections to provide variable trench depth as required by site conditions.
- Unique interlocking joints remove the need for couplings
- Wide variety of grate styles to accommodate any color and load requirement
Frequently Asked Questions
Where can I purchase NDS Dura Slope Trench Drains and accessories?
We're a little biased, but we believe there's no better place to buy NDS products than here at Drainage Connect. You can browse our selection of NDS Dura Slope equipment here.
What lengths are available?
NDS Dura Slope trench drain is available in 4 FT lengths. Dura Slope trench drains can run 194 feet of a continuous slope; 266 feet with neutral sections added.
What colors grates are available?
Dura Slope trench drain grates are available in white, grey, green, black, sand, and brick red.
Are metal grates available?
Yes! The Dura Slope trench drain system offers a wide variety of metal grates options to accommodate load ratings up to Class D (326-575 PSI). See our selection here. .
What is the load rating of NDS Dura Slope Trench Drains?
Loads are based upon encasing the product in concrete and on grate selection. Dura Slope plastic (structural foam polyolefin) meets Class B load rating (61-175 psi), while ductile iron and cast iron meet Class D load rating (326-575 psi).
Does the Dura Slope Trench Drain ship with any attachments?
Each section of Dura Slope trench drain section comes with two blank grate that eliminates the use of plywood. Two Dura Slope Profit Grate Locks are also included with all Dura Slope™ trench drains, which used to prevent joint movement during installation.
Can the Dura Slope trench drain make bends?
Dura Slope Trench drains uses radius coupling that are built with a ±3° range of angular motion. This feature allows Dura Slope trench drains to form a curved radius at the end of track fields. Each radius coupling comes with a plastic (HDPE) standard grate attached with two grate screws. Dura Slope™ radius couplings are available in four neutral depths and were designed to connect neutral Dura Slope™'s trench drain sections of the same depth. For a guide to the Dura Slope™ trench drain sections and their corresponding radius coupling, see the table below:
|Radius Coupling Part Number and Description||Corresponding Dura SLope Trench Drain|
|DSRC-097: 6.35" Deep Dura Slope Radius Coupling||DSRC-097N: 6.35" Deep Dura Slope Radius Coupling|
|DSRC-100: 7.36" Deep Dura Slope Radius Coupling||DSRC-100N: 7.36" Deep Dura Slope Radius Coupling|
|DSRC-103: 8.37" Deep Dura Slope Radius Coupling||DSRC-103N: 8.37" Deep Dura Slope Radius Coupling|
|DSRC-106: 9.37" Deep Dura Slope Radius Coupling||DSRC-106N: 9.37" Deep Dura Slope Radius Coupling|
How do I connect the channels together?
Dura Slope Trench drains connect via the built-in interlocking joints at the end of each channel. This channel drain system also offers Dura Slop radius couplings that have a ±3° range of angular motion. This feature allows Dura Slope™ trench drains to form a curved radius at the end of the track
How does the water drain out of the Dura Slope Trench Drains?
Water can be drained out of NDS Dura Slope Trench drains in a variety of ways. Dura Slops Trench drain have equipped with ability to drill out the channel bottom outlet, and install either a (# DS-126) bottom outlet adapter , End Outlet (#DS-227) , or rather a Catch Basin (#DS-340) . Note: Bottom outlets, drain outlets, and catch basins connected to the deepest end of the trench drain run.
Do I need to worry about expansion and contraction of the grates?
NDS recommends that 1/8" be left in between each grate to allow for any expansion or contraction that may occur.
How much water can the channel hold?
Dura Slope Trench drains have an inside nominal flow path width of 4"(101.6mm), with a bottom radius of 2" (50.8mm) to facilitate sediment removal. All Dura Slope trench drains are equipped to withstand a compressive strength of 2,900 psi, with a material tensile stress of 4,550 psi and material flexural strength of 5,800 psi.
How do I glue on the accessories?
Dura Slope Trench Drains from NDS are made from PVC and can use PVC glue to secure attachments. Dura Slope Trench drains are made from HDPE and can have their attachments secured by welder contact adhesive.
How are the grates connected to the channel?
The grates themselves fit within the Dura Slope Profit Grate Locks . Grate screws are included with all Dura Slope™ trench drains and radius couplings.
How do I connect to the bottom of the channel drain?

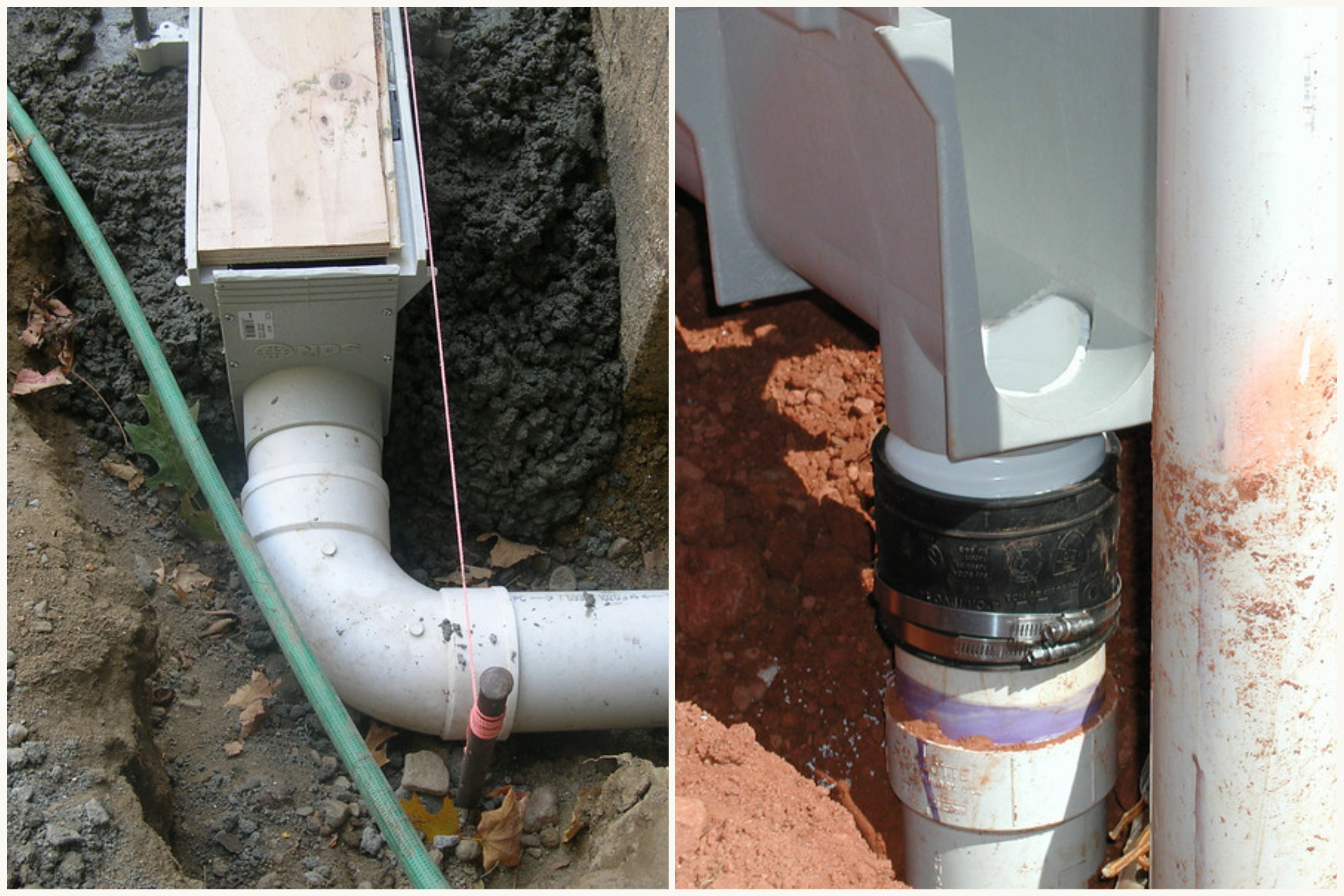

If connecting to 4” sewer and drain (SDR35) pipe, cut out the bottom drain and insert the (# DS-126) bottom outlet adapter . If using 4” schedule 40 pipes, connect NDS part # 56-44 flexible coupling to the 4” pipe and then to the bottom drain of the channel. Tighten the clamps to secure them in place. Other diameter pipes can be connected using the appropriate flexible coupling.
How do I prevent concrete from filling the channel during the pour?
All Dura Slope Channels come with a removable cover. Put tape over the slots and screws before pouring concrete. After the concrete has been finished and cured, remove and discard the covers. The screws are used to secure the grates to the channel
Do the Dura Slope Channels have to be installed in a particular order?
Yes. All channel segments are clearly labeled with an NDS part number sticker. The channels must be installed in ascending numerical order starting with the smallest part number. The part number sticker also shows the number of the segment to be installed upstream and downstream of a segment.
What is the built-in slope?
The fall in each sloped section of Dura Slope channel is 0.34”. Each section comes with a built-in 0.7% slope. The neutral sections have flat bottoms.
What are the depths of the channels?
Each channel section is different. The shallowest channel is 3.99” from the bottom of the grate to the flow line in the channel. The deepest channel is 12.06” from the bottom of the grate to the flow line. All Dura Slope grates are ¾” thick.
What is the longest run that can be done using Dura Slope Channels?
Without the use of neutral sections (no bottom slope), the maximum length run is 96 feet. With the use of one neutral section in its designed place, the maximum length run is 132 feet. There will be 8.07” of fall in these runs. The channel can be lengthened by adding additional neutral sections. We do not recommend connecting more than 4 consecutive neutral segments together to allow for proper flow and prevent standing water in the channel.
Installation InstructionsDura Slope Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
Dura Slope Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
Dura Slope Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
Dura Slope Installation Detail, Load Class A and B, 4" Encasement, Suspension W Asphalt
Dura Slope Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
Dura Slope Installation Detail, Load Class C, 6" Encasement, Form Board Suspension
Dura Slope Installation Detail, Load Class C, 6" Encasement, Rebar Suspension
Dura Slope Installation Detail, Load Class C, 6" Encasement, Rebar Suspension W Asphalt
Dura Slope Installation Detail, Load Class C, 6" Encasement, Rebar Suspension W Pavers
Dura Slope Installation Detail, Load Class C, 6" Encasement, Wood Member Suspension Method
Dura Slope Installation Detail, Load Class D 8" Encasement, Form Board Suspension
Dura Slope Installation Detail, Load Class D 8" Encasement, Rebar Suspension
Dura Slope Installation Detail, Load Class D 8" Encasement, Rebar Suspension W Pavers
Dura Slope Installation Detail, Load Class D 8" Encasement, Wood Member Suspension
Dura Slope Installation Detail, Pool Application 4" Encasement, No Expansion Joint
