NDS Mini Channel

What is the Mini Channel Drain Series?

Mini Channel Drains from NDS are a modular drainage system designed for homeowners, landscapers, and builders alike. Created with durable, yet lightweight polyolefin parts, Mini Channel Drains from NDS feature a unique flying buttress design for increased support and stability on both sides as well as underneath the channel. The chemically resistant, rust proof, UV inhibited Mini Channel System can be easily cut to length and solvent welded just like PVC. With a variety of configuration options, it has never been easier to install custom drainage solutions!

Applications for NDS Mini Channel Drains

NDS Mini Channel Drain systems are versatile, easy-to-install trench drain systems that allow for the collection and diversion of water. Mini Channel Drains are available in six foot lengths, but are easily cut to accommodate any space. Coupled with a variety of accessories and grates available in a wide variety of colors and styles, it has never been easier to design a drainage system that fits your project and desired aesthetic. Recommended applications of the NDS Mini Channel Drain System include:

  • Patios
  • Pools
  • Tennis Courts
  • Spas
  • Decks
  • Residential Hardscapes


  • A unique, patented flying buttress design that provides support from both sides as well as the bottom.
  • Patented honeycomb walls with UV inhibitors
  • Chemical resistance for long lasting durability
  • A variety of aesthetics and colors to match any project

Frequently Asked Questions

Where can I purchase NDS Mini Channel Drains and accessories?

We stock all of the NDS Mini Channel products at an extremely low price. You can browse our selection here.

What lengths are available?

NDS Mini Channel Drains are only available in 6’ sections here, but can be easily cut to accommodate any length. Mini Channel Drain grates come in three foot sections, so two are required per drain. A 3 foot section with bottom spigot is also available for users looking to divert water below.

What colors grates are available?

The Mini Channel grates are available in white, grey, green, black, sand, and brick red. Mini Channel Drain Grates are also available in two decorative styles, botanical and wavy.

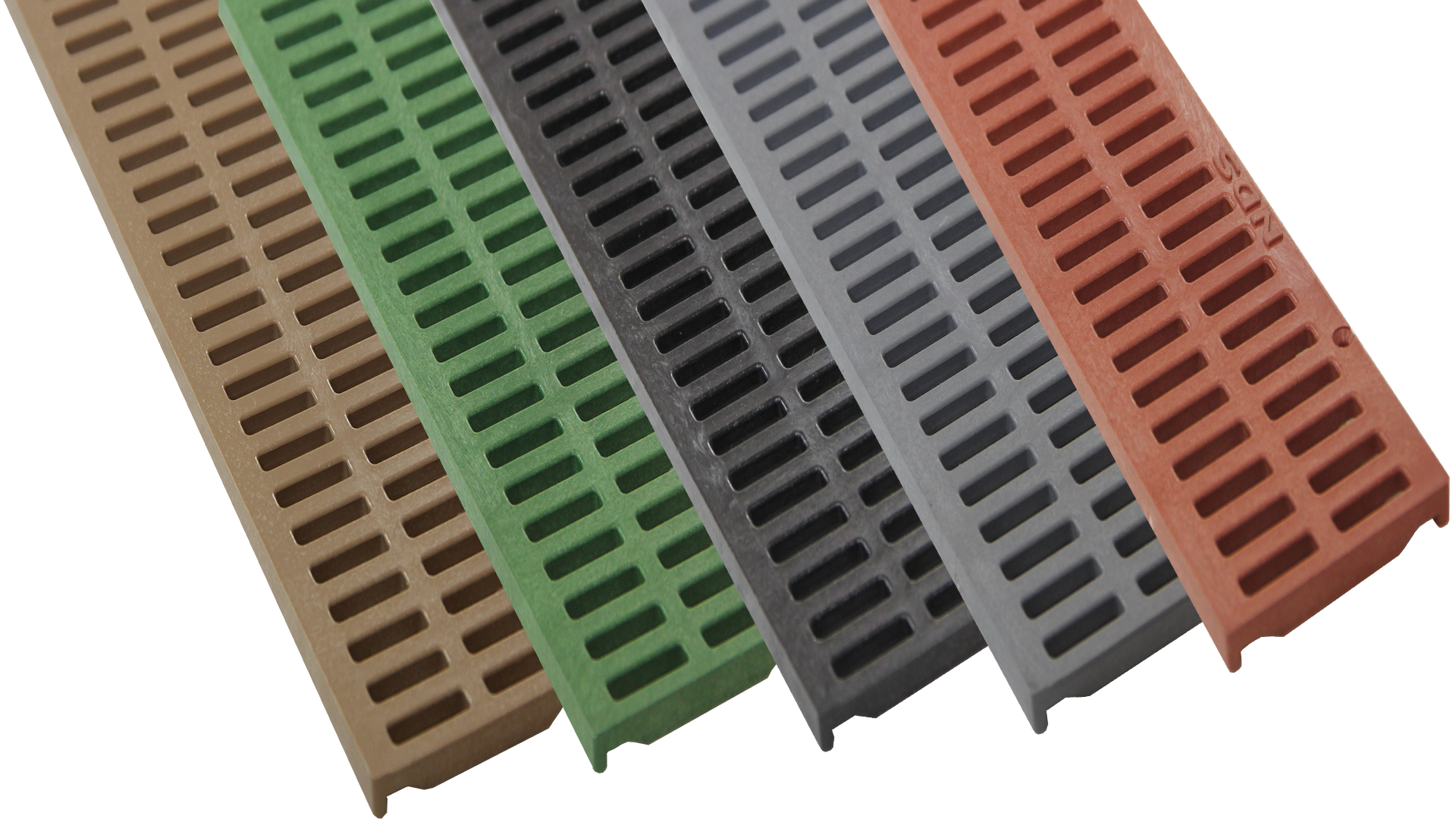

NDS Mini Channel Color Assortment

Are metal grates available?

Cast Iron Grates are available while the Satin brass and polished brass grates are available upon request, Drainage Connect does not stock them.

What is the load rating of NDS Mini Channel Drains?

Injection molded Mini Channel grates are class B rated, capable of supporting automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h. Brass grates are Class A rated, for pedestrian traffic, bicycles, and wheelchairs (up to 60 psi).

Does the Mini Channel ship with any accessories?

The Mini Channel Drain does not ship with any accessories. Each drain will require fittings for each end, two grates, and four screws, which may be found here

Can the Mini Channel make bends?

Yes, the Mini Channel can make bends. NDS manufactures prefabricated 45's, 90's, and tee's. The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.

How do I connect the channels together?

Mini Channel drains are connected by using Mini Channel couplings.

How does the water drain out of the Mini Channel Drain?

Water can be drained from NDS Mini Channel drains in one of two ways: the bottom of the channel or the side. To drain the water from the side of an NDS Mini Channel drain, you will need a spigot adapter. To drain water from the bottom of the channel, you will need a specialized piece of mini channel drain

Do I need to worry about expansion and contraction of the grates?

NDS recommends that 1/8" be left in between each grate to allow for any expansion or contraction that may occur.

How much water can the channel hold?

Mini Channel drains hold approximately the same amount of water as a 3" pipe of equivalent length.

How do I glue on the accessories?

PVC glue may be used to attached Mini Channel accessories to the drain itself.

Can I use rebar or any other method to stake the channel sections instead of the 6” channel installation stakes?

Yes. The recommended method install the channel is to drive a piece of ½” or 5/8” piece of rebar into the ground in the trench. Then drill small holes in the bottom flange of the channel. Next, insert tie wire into the hole and twist it onto the rebar such that the top of the channel sits 1/8” below the finished edge of the concrete. Example Below:

NDS Mini Channel Rebar Installation Detail

How are the grates connected to the channel?

The grates themselves fit in a groove within the Mini Channel drain. Four screws are required for each Mini Channel grate. Screws come 50 per package and may be purchased here. Screws are stainless steel to decrease the amount of maintenance required.

NDS Mini Channel Grate Installment Detail
