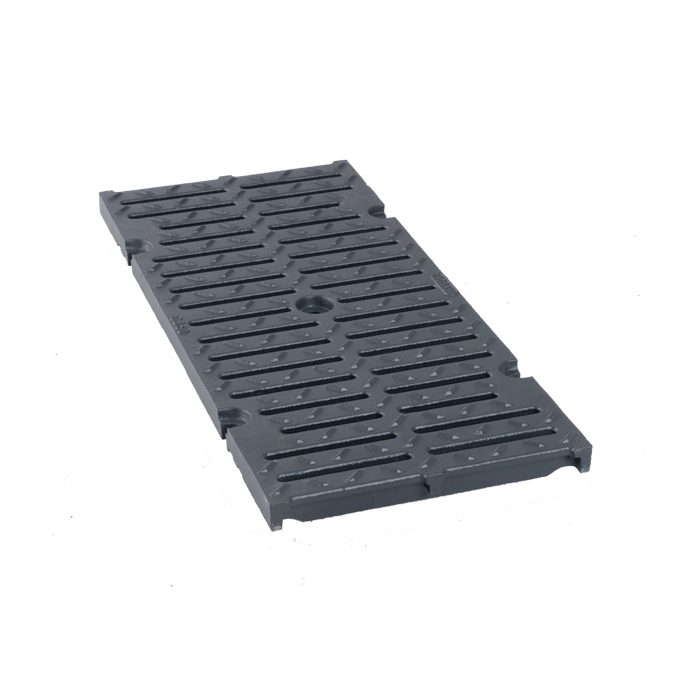

Josam Pro Plus 200 Ductile Iron Slotted Grate (ADA) (Load Class F)
176,61 US$
Disponible
SKU
200-DIS-F
Dimensions: Length: 19-5/8" x Width: 8-3/4" x Height: 1-3/4"
For personalized assistance or a customized quote, Call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: Josam Pro Plus 200 Ductile Iron Slotted Grate (ADA) (Load Class F)
JOSAM PRO-PLUS 200 Series slotted ductile iron grates are engineered for extreme load environments while maintaining ADA compliance. Ideal for industrial facilities, loading docks, and heavy service areas.
Quick Look
- Material: Epoxy-Coated Ductile Iron
- ADA Compliant
- Fits: Josam Pro Plus 200 Channel Drains
- Slot width: 1/2"
- H-20 Rated
- Made In U.S.A
- Uses Josam Locking Bar Securement
- Load Recommendation: Class F
Shop the entire line of Josam Products
Additional Resources
Technical Specifications Sheet: Josam Pro Plus 200 Ductile Iron Slotted Grate (Load Class F)How Do I Choose The Right Channel Drain For My Drainage System?
Will Iron Metal Grates Rust?
Sizing for Storms: Estimating Runoff for Drainage Systems
ADA Compliance and Your Drainage: Urban Planning for Accessibility
Josam Product Resources
| Brand | Josam |
|---|---|
| Numero de parte | 200-DIS-F |
| Color | Negro |
| Longitud | 19-5/8" |
| Anchura | 8-3/4" |
| Apertura de rejilla | 1/2" |
| Área de superficie abierta | 38 square inches per 1/2 meter grate. |
