ACO PowerDrain SK1-621D Catch Basin with Plastic Base
Price available on request
In stock
SKU
SK1-621D
Model x Grate Seat x System Width: SK1-621D x 19.69" x 4"
For personalized assistance or a customized quote, call us directly at (803)-324-3225. Our team can help confirm component compatibility and project quantities.
Product Details: ACO PowerDrain SK1-621D Catch Basin with Plastic Base
The ACO PowerDrain SK1-621D (part 67053) is the catch basin with plastic base for the S100K 4" heavy-duty channel family. It provides a half-meter seat for a removable grate and a catch-basin assembly within a coordinated PowerDrain run.
Outlet locations, invert elevations, pipe-flow data, bucket effects, and assembly components vary by basin. Use the dedicated current ACO specification sheet when laying out connections; pipe-flow values are not channel-flow ratings.
Quick Look
- Model: SK1-621D; ACO Part Number: 67053
- Compatible System: PowerDrain S100K
- Configuration: Catch Basin with Plastic Base
- Nominal Channel Width: 4" (100 mm)
- Grate Seat Length: 19.69" (500 mm)
- Top Frame: ductile iron

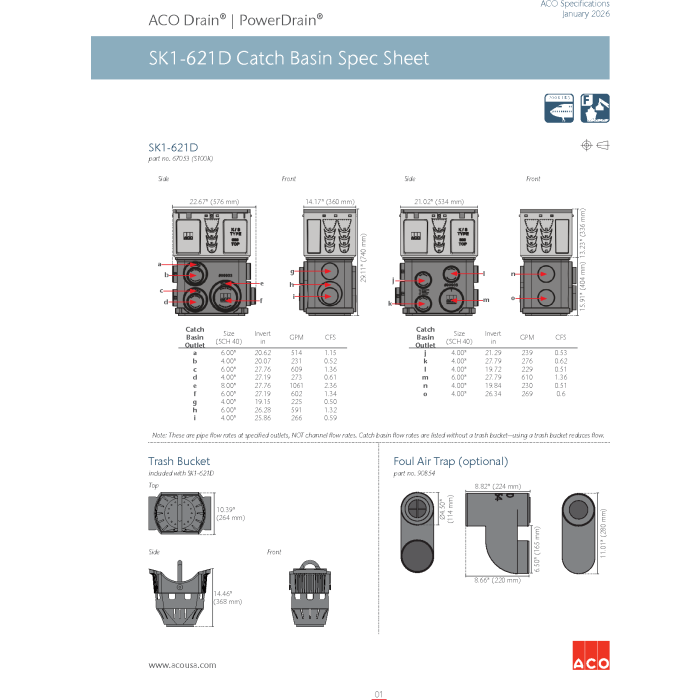

- Dedicated ACO sheet documents the assembly geometry, outlet positions, flow data, and included components
Additional Resources
Official ACO Specification Sheet| Brand | ACO |
|---|---|
| Part Number | 67053 |
| Length | 19.69" |
