Product Details: ACO PowerDrain 96833 PowerLok Longitudinal Ductile Iron Grate - S300K System

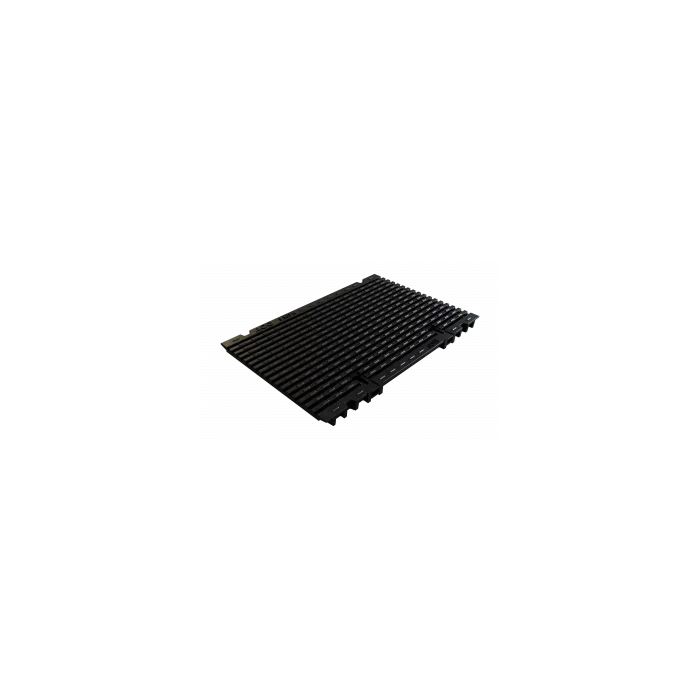

The ACO PowerDrain 96833 is a removable longitudinal ductile-iron grate for the S300K channel system, whose live card lists 12" as the system width. Its PowerLok boltless locking, 0.76" x 0.31" avg. opening pattern, and published 63.20 in² intake area support selection by security, accessibility, hydraulic opening, and traffic requirements.
This 19.69" grate weighs 64.00 lbs. The verified current system class is EN 1433 Class E; the live card separately lists EN 1433 Load Class E: 134,885 lbs; 1,856–2,785 PSI. The realized system rating also depends on the compatible channel, concrete, installation detail, and assembly.
Quick Look
- ACO Part Number: 96833
- Compatible System: PowerDrain S300K (12" listed system width)
- Listed Length: 19.69"; System Compatibility Width: 12"
- Material: ductile iron; Design: Longitudinal
- Locking: PowerLok boltless locking
- Slot Size: 0.76" x 0.31" avg.
- Intake Area: 63.20 in²
- Published Weight: 64.00 lbs
- Verified System Class: EN 1433 Class E
- Current Live-Card Load: EN 1433 Load Class E: 134,885 lbs; 1,856–2,785 PSI
- Current Live-Card Site-Need Labels: ADA Compliant, Bicycle Safe, Heel Resistant, Anti-Slip
Additional Resources
Official ACO Specification Sheet| Brand | ACO |
|---|---|
| Part Number | 96833 |
| Length | 19.69" |
