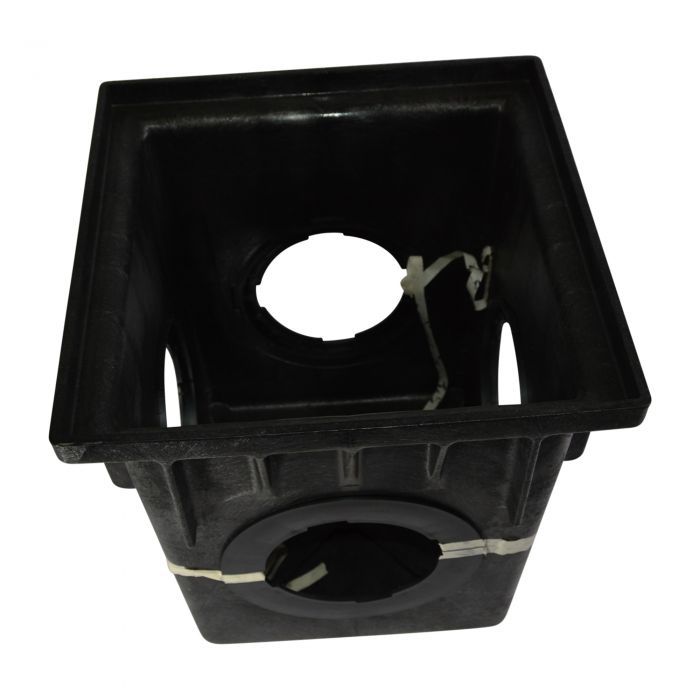

NDS 18" Catch Basin, 4 Opening
Dimensions: L:17.5" x W:17.5" x H:18-9/16"
Call in directly to 803-324-3225 for a personalized quote.
Product Details: NDS 18" Catch Basin, 4 Opening
The NDS 18" Catch Basin, 4 Opening features UV-resistant 1-piece injection-molded structural polypropylene construction for strength. This item is used for areas where water buildup occurs. Catch Basins catch and divert water to water-safe areas away from structures, erosion-prone landscapes, and poor drainage areas. Catch Basins are great for many residential and commercial applications because of the accumulation of excess surface water from the lawn, landscape, residential driveways, and garages. 18" Catch Basin, 4 Opening is suitable for light vehicular traffic when properly installed, suitable for both landscape and hardscape applications, and able to withstand normal abuse in landscaping applications. 5 psi maximum working pressure. NDS 18" Catch Basin, 4 Opening are fade-resistant, rust-resistant, lightweight, and easy to install!
- UV Protected High Density Polyethylene (HDPE)
- Includes 4 NDS #1890 Reducer Rings
- The connections between the catch basin and the sump boxes, risers, and universal outlets are soil tight, not water tight. Adding a bead of water proof silicone on each surface being connected will create a water tight connection
- Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
- Keyed openings on basin lock outlet adapters in place
- Requires either NDS #1206, #1242, #1245, #1266, #1888, or #1889 universal outlet to connect pipe
- Product Class: 10ND
Additional ResourcesHow To Fix A Downspout Problem
NDS 18" Catch Basin, 4 Opening Technical Specifications Sheet
How To Use A Catch Basin
Catch Basin Flow Capacities
Catch Basin Invert Table
Installation InstructionsNDS 18" Catch Basin Installation for Landscape Applications
NDS 18" Catch Basin Installation for Pedestrian and Light Vehicular Traffic Applications
NDS 18" Catch Basin Installation for Vehicular Traffic Applications (Load Class C)
NDS 18" Catch Basin Plumbing Connection
NDS 18" Catch Basin Installation for Landscape Application with Riser
