NDS 12" Catch Basin Decorative Botanical Grate - Sand
Dimensions: L:11 3/4" x W:11 3/4" x H:1-1/8"
Color: Gray (#1218GY), Green (#1218GR), Black (#1218), Sand (#1218S)
Call in directly to (803)-372-0846 for a personalize quote.

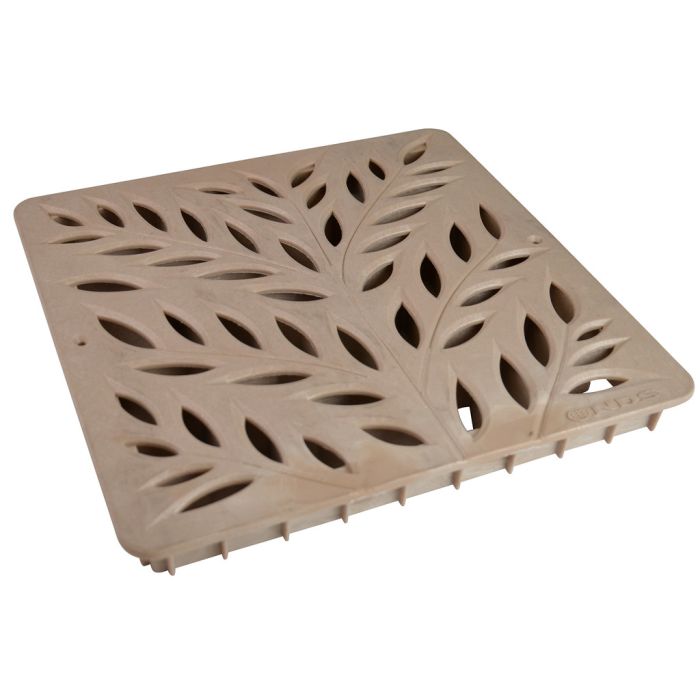

Product Details: NDS 12" Catch Basin Decorative Botanical Grate
The NDS 12" Catch Basin Decorative Botanical Grate is part of the NDS drainage system. The catch basins from NDS, paired with their varied lineup of grates, are one of the most practical solutions to a plethora of common drainage problems. The 12" decorative grate in a botanical pattern improves the aesthetics of your outdoor living space by giving a special decorative touch to any outdoor environment. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. This product is part of the NDS 12" Catch Basin Series.
Quick Look
- 12” Structural High Density Polyethylene (HDPE) Grate
- UV Inhibitor
- Open Surface Area: 24.44 square inches per sq. ft
- Use with the 12 in. catch basin, riser, or low-profile adapter to drain moderate flows of excess stormwater from lawns, landscaped areas, patios, walkways, and under downspouts
- 74.77 GPM per sq. ft. with 1/2" of head
- ADA Compliant
- Load Rating: Class B (61-175 psi)
- Designed for use with the NDS 12” Catch Basin Series
Additional Resources
How To Stop Water From PuddlingUsing Catch Basins to Capture Run-off
How To Choose The Right Size Catch Basin
Installing NDS Catch Basins
NDS 12" Catch Basin Decorative Botanical Grate Technical Specification Sheet
NDS Specifications Sheets: Catch Basin Flow Capacities
Installation Instructions
NDS 12" Catch Basin Installation for Landscape ApplicationsNDS 12" Catch Basin Installation for Pedestrian and Light Vehicular Traffic Applications
NDS 12" Catch Basin Installation for Vehicular Traffic Applications (Load Class C)
NDS 12" Catch Basin Plumbing Connection
NDS 12" Catch Basin Installation for Landscape Application with Riser
Numero de parte | 1218S |
---|---|
Color | Sand |
Longitud | 11 3/4" |
Anchura | 11 3/4" |
Altura | 1 1/8" |
Apertura de rejilla | 3/8" |
Área de superficie abierta | 24.44 square inches |
Galones por Minuto | 74.77 |
