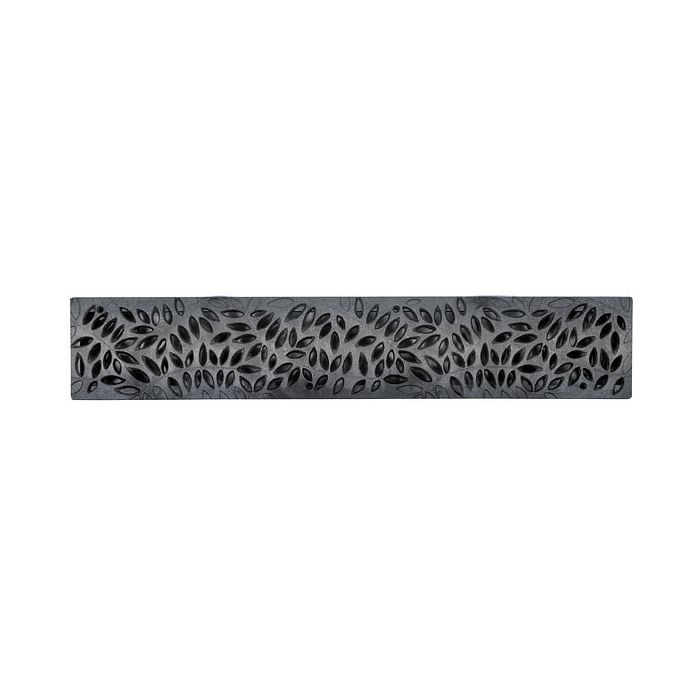

NDS Botanical Spee-D Channel Grate

As low as 32,66 US$
Disponible
SKU
NDS 252

Dimensions:Length: 24" x Width: 4.42" x Height: 0.925"


Color: Black (#252), Gray (#252GY), Green (#252GR), Sand (#252S)


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Spee-D Botanical Channel Grate

The NDS Spee-D Channel system is a lightweight, easy-to-install alternative to traditional concrete drainage channels. It features a larger surface area for drainage and is suitable for both residential and non-residential applications such as swimming pools, patios, and light vehicular traffic areas. The NDS Spee-D Botanical Channel Grate comes in four colors: Black (#252), Gray (#252GY), Green (#252GR), and Sand (#252S). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today!

Quick Look

  • ADA Compliant
  • Colors: Black (#252), Gray (#252GY), Green (#252GR), Sand (#252S)
  • Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
  • Dimensions: 24" LENGTH x 4.420" WIDTH x 3/4" Height
  • Will accommodate 47.60 gallons per minute 1/2" of head
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • UV Inhibitors
  • Material: UV Protected High-Density Polyethylene (HDPE)
  • Install with Four FH #8 x 1 in. screws (Sold Separately)
Shop the entire line of NDS Spee-D Channel Products
NDS Spee-D Drainage FAQS

Additional Resources

NDS Spee-D Botanical Channel Grate Technical Specifications
How To Install A NDS Spee-D Channel Drain
NDS Spee-D Channel Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Spee-D Channel Drain Light Vehicular Traffic Installation - Pavers
NDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
Más Información
Numero de parte NDS 252
Longitud 24"
Anchura 4.42"
Apertura de rejilla 3/8 x 3-1/4"
Área de superficie abierta 15.56 Square Inches Per Foot
Galones por Minuto 47.60 GPM
