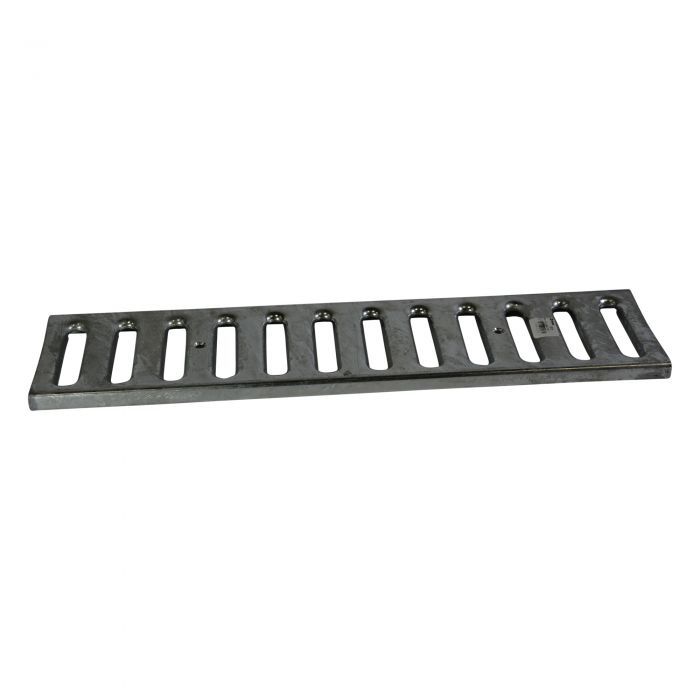

NDS Dura Slope Galvanized Steel Grate
65,29 $
Disponible
SKU
DS-221
Dimensions: L:24" x W:6" x H:3/4"
Call in directly to (803)-372-0846 for a personalized quote.
Product Details: NDS Dura Slope Galvanized Steel Grate
NDS grates are a proven alternative to traditional concrete drain grates. NDS grates are designed to be chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. NDS has a full line of drainage products, fittings, and accessories available. Installed properly, these grates are rated for Class B loads of 61-175PSI! This item is used for Dura Slope Trench Drains
Quick Look
- Dura Slope Channel and grates have been tested to the AASHTO M-306 and EN 1433 (DIN 1958) test methods by an independent AASHTO accredited lab
- 23.09 Open Surface Area
- UV Inhibitors
- Galvanized Steel
- Fits: Use with Dura Slope Channel Drains and Dura Slope Catch Basin (DS-340)
- 70.64 GPM Capacity Per Foot
- ADA Compliant
- Product Class: 25DS
- Class B Load Rated (60-175 PSI)
Additional Resources
How To Fix A Downspout ProblemNDS Dura Slope Galvanized Steel Grate Technical Specifications
NDS Dura Slope Trench Drain Catalog
NDS Dura Slope Installation Manual
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Form Board SuspensionNDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension With Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Wood Member Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Wood Member Suspension Method
NDS Dura Slope Trench Drain Installation Detail Load Class D 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Wood Member Suspension Method
Numero de parte | DS-221 |
---|---|
Longitud | 24" |
Anchura | 6" |
Apertura de rejilla | 3/4" x 4-7/16" |
Área de superficie abierta | 23.09 Open Surface Area |
Galones por Minuto | 70.64 GPM |
