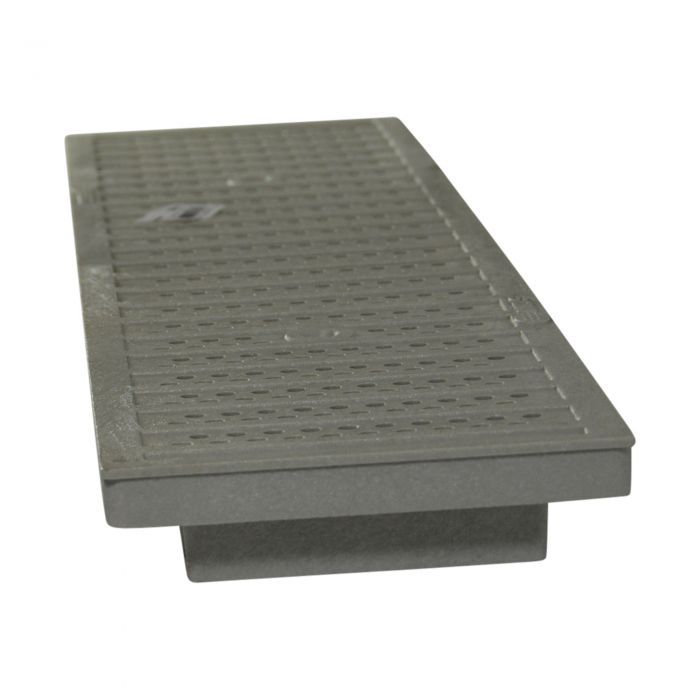

NDS Dura-Slope Plastic Perforated Channel Grate

Tan bajo como 43,97 $
Disponible
SKU
NDS-DS-670

Product Details: NDS Dura-Slope Plastic Perforated Channel Grate

Dura Slope™ is a high-quality, dependable, and best-in-class trench drain system. Each Dura Slope Trench Drain has Various grating options, Stainless steel, galvanized, cast iron, and plastic grates available! Although this item is s Plastic Perforated grate, pedestrian traffic rated, heelproof, and ADA compliant.

Quick Look

  • UV Protected High Density Polyethylene (HDPE)
  • ADA Compliant
  • Heel-Proof
  • 1/4" Grate Opening
  • Colors: White (#DS-670), Grey (#DS-671)
  • Grate Opening: 8.75 in sq. per foot
  • Class B Load Rated (60-175) PSI
  • Product Class: 25DS
  • Will accommodate 26.77 gallons per minute per foot with 1/2” of head
  • Fits: NDS Dura Slope Channel Drains and NDS Dura Slope Catch Basin (#DS-340)
Shop the entire line of NDS Dura Slope Products

Additional Resources

How To Install A NDS Dura Slope Trench Drain
NDS Dura-Slope Plastic Perforated Channel Grate Technical Specifications
NDS Dura Slope Trench Drain Catalog
NDS Dura Slope Channel Drain Specification Video
How To Use A NDS Dura Slope Channel Drain On A Work Site
NDS Dura Slope Installation Manual
Más Información
Numero de parte NDS-DS-670
Longitud 24"
Anchura 6"
Apertura de rejilla 1/4"
Área de superficie abierta 8.75 Square Inches Per Foot
Galones por Minuto 26.77 GPM
