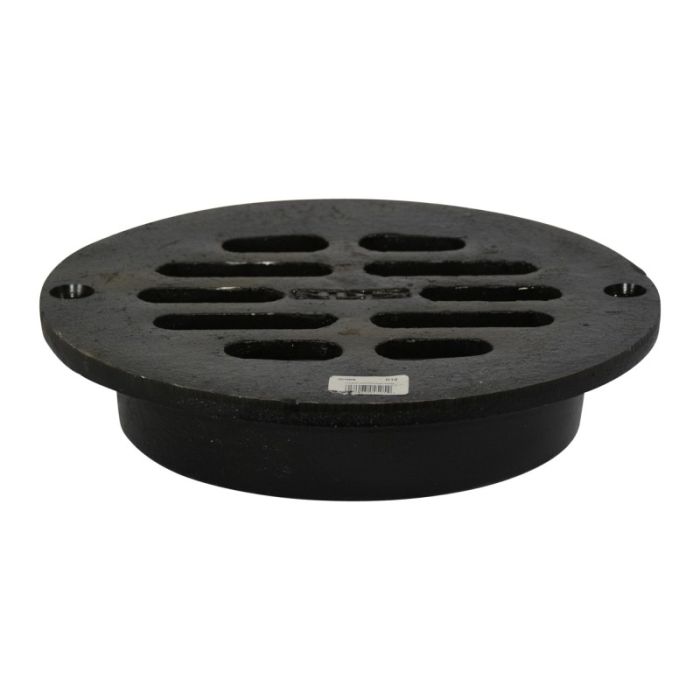

NDS Duracast 10" Round Grate

125,98 US$
Disponible
SKU
D10

Dimensions: Length: 12.5" x Width: 12.5" x Height: 2-3/8"


For personalized assistance or a customized quote, Call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Duracast In-Line 10" Round Grate

The NDS Duracast In-Line 10" Round Grate is a heavy-duty ductile iron round grate that is specifically designed for stormwater drainage systems. With its impressive load-bearing capacity, this grate is capable of handling loads ranging from 326 to 575 psi, while also meeting H-20 load rating standards. The Duracast In-Line 10" Round Grate is an excellent choice for areas with high traffic or heavy loads. Duracast In-Line 10" Round Grate is designed to fit 8" corrugated sewer and drain pipe. Ductile iron is equipped with a superior strength-to-weight ratio and improved resistance to corrosion. Don't hesitate to call in directly to speak to an expert if you wish for personal assistance.

Quick Look

  • Material: Ductile Iron
  • H-20 Rated
  • Recommended for heavy duty hard tire forklifts at speeds less than 20 MPH
  • Load Recommendation: Class D (326-575 PSI / 89,920 lbs per foot)
  • Part of NDS Duracast Series
  • ADA Compliant
  • Will accommodate 82.05 gallons per minute with 1/2” of head
  • Bolt holes for added security
  • Open surface area 26.82 square inches.
  • Fits: 10" Corrugated and Sewer and Drain pipe
Shop the entire line of Round Grates Products

Additional Resources

NDS Duracast In-Line 10" Round Grate Technical Specifications

Installation Instructions

NDS Round Grate with Spee-D Basin 2-Outlets using Corrugated Pipe Installation Detail
NDS Round Grate with Spee-D Basin 2-Outlets Installation Detail
NDS Round Grate with Spee-D Basin 1-Outlet using Corrugated Pipe Installation Detail
NDS Round Grate with Spee-D Basin 1-Outlet Installation Detail
NDS Round Grate with Corrugated Pipe (Tee) Installation Detail
NDS Round Grate with Sanitary Sewer and Drain Tee Corrugated Pipe Installation Detail
NDS Round Grate with Sanitary Sewer and Drain Tee Installation Detail
NDS Round Grate with Sewer and Drain Elbow Corrugated Pipe Installation Detail
NDS Round Grate with Sewer and Drain Elbow Installation Detail
Más Información
Numero de parte D10
Color Negro
Longitud 12.5"
Anchura 12.5"
Altura 2-3/8"
Apertura de rejilla 1"
Área de superficie abierta 36.82 in² open space
Galones por Minuto 82.05 gallons per minute with 1/2” of head
