ACO MiniKlassik KS50 Neutral Trench Drain Channel - Grade 304 Stainless Steel Rail - 1 Meter

Product Details: ACO MiniKlassik KS50 Neutral Trench Drain Channel - Grade 304 Stainless Steel Rail - 1 Meter

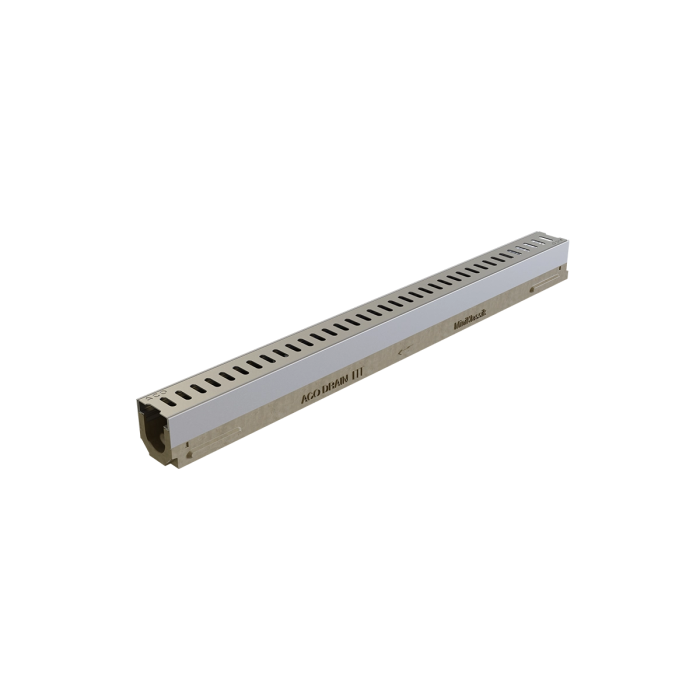

The ACO MiniKlassik KS50 is a compact, constant-depth polymer-concrete channel for projects that need a narrow 2" (50 mm) clear opening. Its full-radius invert, cast-in grade 304 stainless steel edge rail, modular male/female ends, and exterior anchoring features give small-footprint commercial and landscape installations a durable, maintainable drainage run.

ACO part 06750 is a 39.37-inch (1 m) neutral section with a constant 2.90-inch (74 mm) invert and 3.50-inch (89 mm) overall depth. A bottom drill-out accepts 1.5-inch Schedule 40 pipe, so the field outlet can be placed where the run layout requires it. Pair the channel with a current K50 grate chosen for the surface use and required load recommendation.

Quick Look

• ACO Part Number: 06750; System: KS50
• Dimensions: 39.37" (1000 mm) L x 3.15" (80 mm) overall W x 3.50" (89 mm) overall depth
• Nominal Clear Width: 2" (50 mm); constant 2.90" (74 mm) invert depth
• Published Weight: 18.0 lbs
• Neutral / constant-depth channel with no built-in slope
• Bottom drill-out accepts 1.5-inch Schedule 40 pipe
• Published bottom outlet flow: 12.7 GPM (0.03 CFS) — pipe flow at the outlet, not channel capacity
• High-strength polyester polymer concrete: at least 14,000 psi compressive and 4,000 psi flexural strength
• Frost proof, salt proof, and resistant to dilute acids and alkalis
• Integrally cast grade 304 stainless steel edge rail and male-to-female interconnecting ends
• Load-tested in accordance with EN 1433 guidelines; system recommendations reach Class C depending on the selected grate
• Compatible with the current MiniKlassik K50/KS50 grate range
