ACO 138062 Twinslot 200 Type 682 Galvanized Steel Access Unit
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

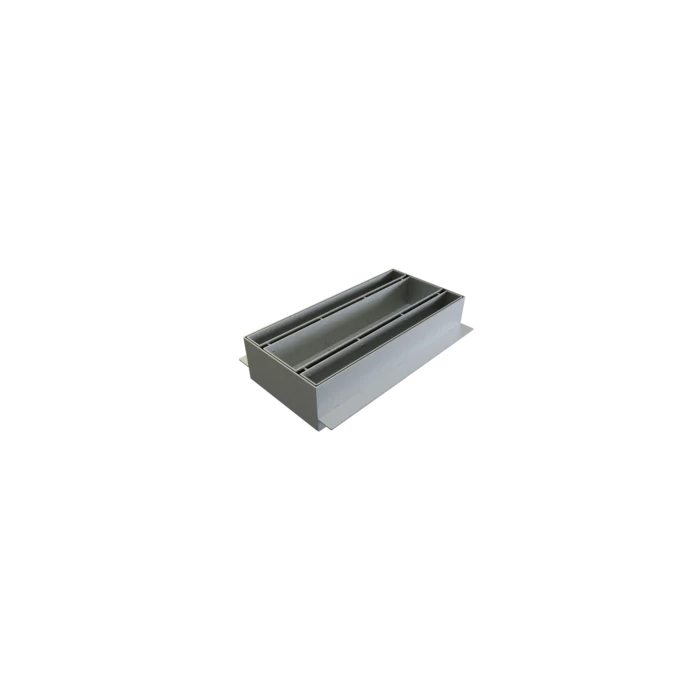

Product Details: ACO 138062 Twinslot 200 Type 682 Galvanized Steel Access Unit
The ACO Twinslot slotted top is engineered for the K200/KS200 trench drain platform. Its Galvanized steel construction and Direct-seat slotted top / removable access unit access arrangement let a designer match surface appearance, opening pattern, accessibility needs, and traffic loading while preserving removable maintenance access.
ACO part 138062 is the Twinslot 200 Type 682 Galvanized Steel Access Unit. The published configuration is 19.69" long, weighs 32.40 lbs, and is rated EN 1433 Load Class C - 56,202 lbs, 774–1,160 PSI. Select the grate by its own load class and site-need icons; the channel alone does not establish the installed system rating.
Quick Look
- ACO Part Number: 138062; Type: Twinslot
- Designed for the ACO KlassikDrain K200/KS200 8" (200 mm) channel system
- Published Length: 19.69"
- Published Weight: 32.40 lbs
- Material / Finish: Galvanized steel
- Load Rating: EN 1433 Load Class C - 56,202 lbs, 774–1,160 PSI
- Retention / Access: Direct-seat slotted top / removable access unit
- Opening Size: 19.70" x 0.47" avg.
- Published Intake Area: 18.60 in²
- ADA Compliant
- Bicycle Safe
- LEED Certified
Shop the complete ACO K200 trench drain line
Additional Resources
ACO Specification Sheet| Brand | ACO |
|---|---|
| Part Number | 138062 |
| Length | 19.69" |
| Width | 8" |
