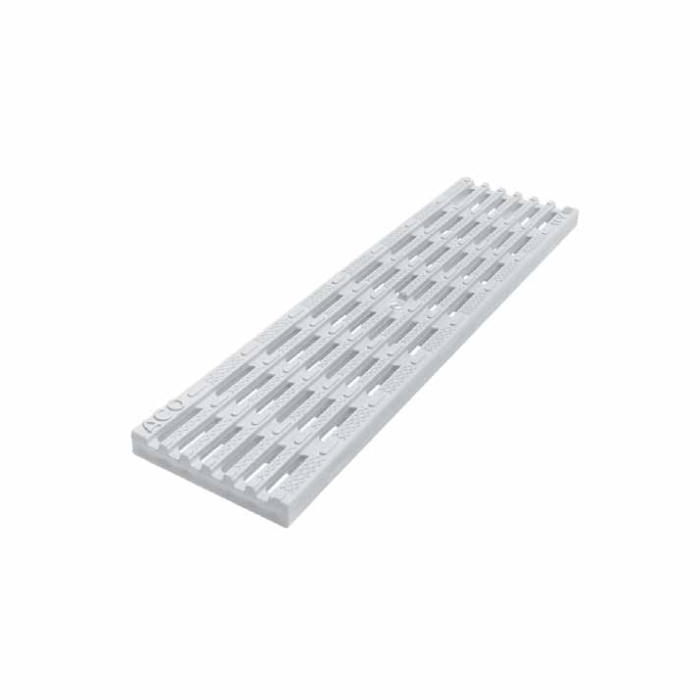

ACO KlassikDrain Type 495Q Longitudinal Plastic QuickLok Grate - Gray - 0.5 Meter

Product Details: ACO KlassikDrain Type 495Q Longitudinal Plastic QuickLok Grate - Gray - 0.5 Meter

Plastic grates give the ACO KlassikDrain K100 and KS100 trench drain systems a lightweight, non-metallic surface option. Molded from UV-stable polypropylene or resin composite, each grate in this family is a half-meter unit sized for the line's 4" (100 mm) internal width channels, and every part number fits both the galvanized steel edge rail of the K100 and the stainless steel edge rail of the KS100, as well as ACO's H100K-8 channels. The family spans ADA-compliant longitudinal designs in black, gray, and tan rated to EN 1433 Load Class A, plus heel-resistant slotted patterns rated to EN 1433 Load Class C. Every grate secures to the channel with one of ACO's boltless locking systems - DrainLok or QuickLok - and lifts back out to leave the trench fully open for cleaning and maintenance.

Type 495Q, ACO part 97385, is a half-meter longitudinal QuickLok grate made from UV stable polypropylene (gray). It weighs 1.8 lbs and carries its own EN 1433 Load Class A - 3,372 lbs - 70 psi rating. Slots measure 0.33 in (8 mm) by 1.74 in (44 mm). Intake area of 27.4 in^2 (176.8 cm^2) per half meter of grate. The grate stud push-fits into the spring clip of the appropriate QuickLok locking bar, which is sold separately.

Quick Look

• Type Code: 495Q — ACO Part Number 97385
• Material: UV stable polypropylene (gray)
• Load Rating: EN 1433 Load Class A - 3,372 lbs - 70 psi
• Weight: 1.8 lbs
• Slots measure 0.33 in (8 mm) by 1.74 in (44 mm).
• Intake area of 27.4 in^2 (176.8 cm^2) per half meter of grate.
• QuickLok boltless locking; locking bar sold separately
• ADA-compliant per The Americans with Disabilities Act of 2010, Section 302.3
• Fits ACO Drain K100, KS100, and H100K-8 trench drain channels - one grate part number serves both the galvanized (K100) and stainless (KS100) edge rails
• Grate Length: 19.69" (500 mm) half-meter format
• Grate Width: 4.84" (123 mm)
• Material: UV-stable, non-metallic molded plastic (polypropylene or resin composite, depending on type)
• Boltless grate locking: DrainLok ("D" types) is factory-fitted and clips directly into the channel edge rail with no locking bar; QuickLok ("Q" types) push-fits into a QuickLok locking bar (sold separately)
• Grates lift out - along with the QuickLok bar where fitted - for uninterrupted access to the trench during cleaning and maintenance
• Part of the ACO KlassikDrain K100/KS100 line, the 4" (100 mm) internal width member of the KlassikDrain family, with channels manufactured to EN 1433 standards
