ACO Brickslot 100 Type 442 Galvanized Steel Slot-Top - 0.5 Meter

Product Details: ACO Brickslot 100 Type 442 Galvanized Steel Slot-Top - 0.5 Meter

The ACO Brickslot 100 series replaces a conventional grate with a discreet slot-top for the KlassikDrain K100 and KS100 trench drain system. Fabricated from 11 gauge steel, each unit fits directly into the channel's grate recess and presents only a narrow drainage slot at the finished surface. Brick pavers fit directly against the slot — the units are designed for 80 mm pavers including 1/8" (3 mm) of bedding — so stormwater is captured along an almost seamless line in plazas, walkways, and other commercial spaces where unobtrusive drainage is essential.

Rated to EN 1433 Load Class C, Brickslot 100 installs without bolts or locking hardware and pairs with K100/KS100 channels as well as Series 900 catch basins. The range spans galvanized and stainless steel construction, standard and heel-resistant slot geometries, 1 meter and 0.5 meter lengths, and half-meter access units that keep the covered system serviceable.

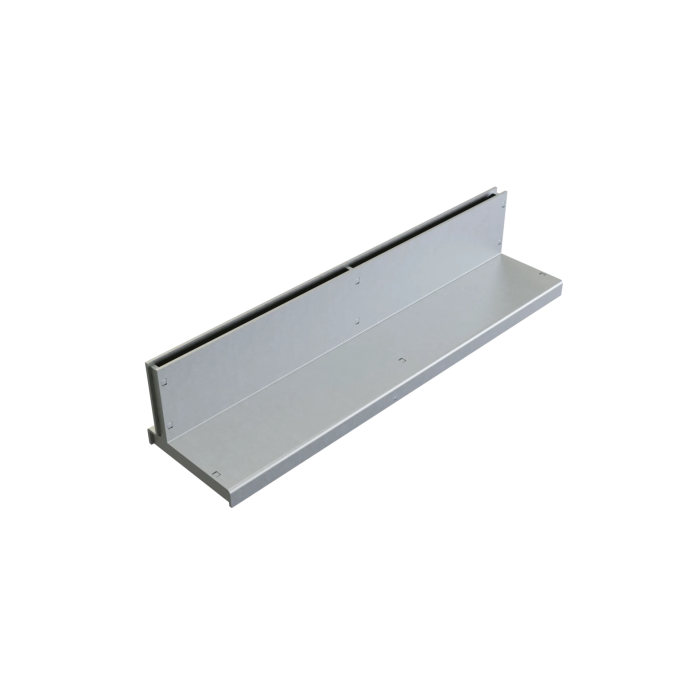

The Type 442 (ACO part number 138041) is the 0.5 meter galvanized steel unit of the range, the half-meter companion to the 1 meter standard slot-top. Formed from 11 gauge galvanized steel, it presents a single offset slot with a nominal 1/2" (12 mm) clear opening — the offset geometry helps prevent debris from being trapped, and the finished drainage line is nearly invisible in paver and brick paving. The unit measures 19.69" (500 mm) long by 4.84" (123 mm) wide by 3.27" (83 mm) high, adds 4.06" (103 mm) above the overall channel depth, and weighs just 9.0 lbs. Rated to EN 1433 Load Class C at 56,202 lbs (774-1,160 PSI), it rests in the channel grate seating with no DrainLok or QuickLok hardware — anti-shunt lugs prevent lateral movement while the weight of the covering material secures the unit — and it carries ADA Compliant, Bicycle Safe, and LEED credentials.

Quick Look

• Load Class: EN 1433 Load Class C (56,202 lbs, 774-1,160 PSI)
• Material: 11 gauge steel (Brickslot 100 range available in galvanized and stainless steel versions)
• Fits directly into the K100/KS100 channel grate recess, replacing a standard grate
• Unit Width: 4.84" (123 mm); Unit Height: 3.27" (83 mm); adds 4.06" (103 mm) above the overall channel depth
• Designed for 80 mm brick pavers including 1/8" (3 mm) bedding - pavers fit directly against the slot
• No DrainLok or QuickLok hardware - the unit rests in the channel grate seating, anti-shunt lugs prevent lateral movement, and the weight of the covering material secures it
• For use with K100/KS100 channels and Series 900 catch basins; also usable with MembraneDrain and SlabDrain (H100-10 / H100-8 / H100K-8) channels
• End caps and accessories available from the K100 range
• ADA Compliant, Bicycle Safe, and LEED
• ACO Part Number: 138041 (Brickslot Type 442)
• Unit Length: 19.69" (500 mm / 0.5 meter)
• Single offset slot with a nominal 1/2" (12 mm) clear opening — the offset helps prevent debris being trapped
• Nearly invisible in paver/brick paving
• Weight: 9.0 lbs
• Load Rating: EN 1433 Load Class C — 56,202 lbs (774-1,160 PSI)
• Material: 11 gauge galvanized steel
