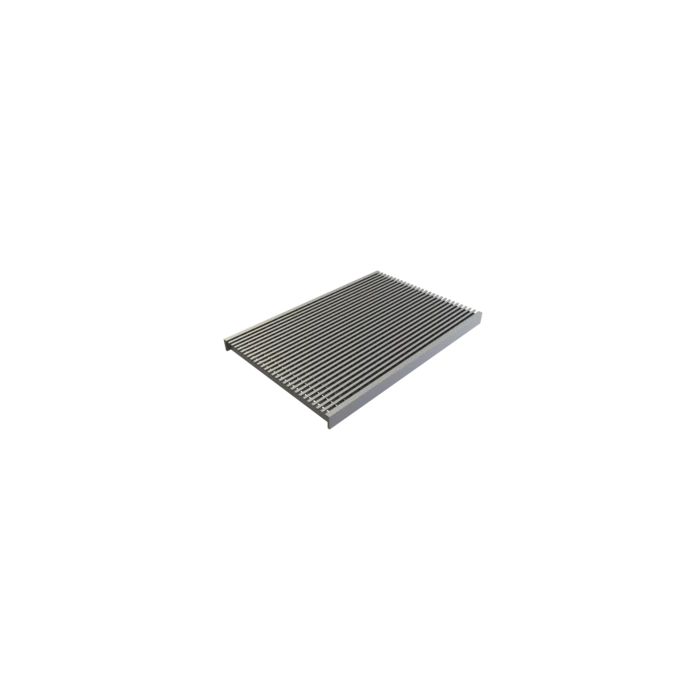

ACO KlassikDrain 142224 Type 848D Longitudinal Stainless Steel Grate
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: ACO KlassikDrain 142224 Type 848D Longitudinal Stainless Steel Grate
The ACO 848D grate is engineered for the K300/KS300 trench drain platform. Its Stainless steel construction and DrainLok access arrangement let a designer match surface appearance, opening pattern, accessibility needs, and traffic loading while preserving removable maintenance access.
ACO part 142224 is the Type 848D Longitudinal Stainless Steel. The published configuration is 19.69" long, weighs 14.00 lbs, and is rated EN 1433 Load Class A - 3,372 lbs, 46–70 PSI. Select the grate by its own load class and site-need icons; the channel alone does not establish the installed system rating.
Quick Look
- ACO Part Number: 142224; Type: 848D
- Designed for the ACO KlassikDrain K300/KS300 12" (300 mm) channel system
- Published Length: 19.69"
- Published Weight: 14.00 lbs
- Material / Finish: Stainless steel
- Load Rating: EN 1433 Load Class A - 3,372 lbs, 46–70 PSI
- Retention / Access: DrainLok
- Opening Size: 0.81" x 0.24" avg.
- Published Intake Area: 131.60 in²
- ADA Compliant
- Bicycle Safe
- Heel Resistant
- Heel Safe
- Anti-Slip
- LEED Certified
Shop the complete ACO K300 trench drain line
Additional Resources
ACO Specification Sheet| Brand | ACO |
|---|---|
| Part Number | 142224 |
| Length | 19.69" |
| Width | 12" |
