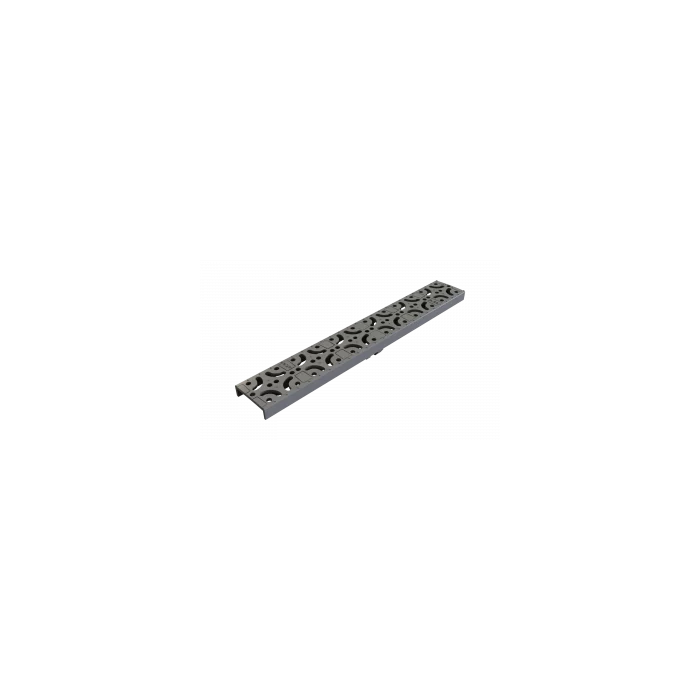

Product Details: ACO MiniKlassik 138105 Type 201D Mosaic Plastic Grate - Gray (ADA)
The ACO 201D grate is engineered for the K50/KS50 trench drain platform. Its Plastic construction and DrainLok access arrangement let a designer match surface appearance, opening pattern, accessibility needs, and traffic loading while preserving removable maintenance access.
ACO part 138105 is the Type 201D Mosaic Plastic Grate - Gray (ADA). The published configuration is 19.69" long, weighs 0.7 lbs. ACO load-tested this grate in accordance with EN 1433 guidelines and reports Class A - 3,372 lbs, 46–70 PSI. Select the grate by its published load-test result and site-need icons; the channel alone does not establish the installed system rating.
Quick Look
- ACO Part Number: 138105; Type: 201D
- Designed for the ACO KlassikDrain K50/KS50 2" (50 mm) channel system
- Published Length: 19.69"
- Published Weight: 0.7 lbs
- Material / Finish: Plastic
- Load-Test Result (EN 1433 guidelines): Class A - 3,372 lbs, 46–70 PSI
- Retention / Access: DrainLok
- Opening Size: 0.30" x 1.20" avg.
- Published Intake Area: 11.6 in² per half meter
- ADA Compliant
- Bicycle Safe
- Heel Resistant
- Non-Metallic
Shop the complete ACO K50 trench drain line
Additional Resources
ACO Specification Sheet| Brand | ACO |
|---|---|
| Part Number | 138105 |
| Length | 19.69" |
| Width | 2.89" |
| Height | 0.84" |
