Product Details: ACO PowerDrain SK1-0403 Constant-Depth Trench Drain Channel - 0.5 Meter
The ACO PowerDrain S100K line is a modular heavy-duty drainage system with a clear opening measuring 4" (100 mm). Its polymer-concrete channel body, integral ductile-iron edge rail, partial-radius invert, interconnecting ends, and exterior anchoring keys support a coordinated installation. The installed load class depends on the selected grate and installation detail.
The SK1-0403 (ACO part 67050) is a 0.5-meter constant-depth section with an invert depth of 11.81" (300 mm) and published weight of 43.0 lbs. This constant-depth section extends or fine-tunes a run without adding built-in fall. This section includes a 4" round / 6" oval bottom-outlet knockout.
Quick Look
- Model: SK1-0403; ACO Part Number: 67050
- Length: 19.69" (500 mm)
- Internal Width: 4" (100 mm); Overall Width: 6.30" (160 mm)
- Invert Depth: 11.81" (300 mm)
- Published Weight: 43.0 lbs
- Channel Body: high-strength polyester polymer concrete
- Edge Rail: integrally cast ductile iron
- Channel Profile: partial-radius invert with male/female interconnecting ends and exterior anchoring keys
- Outlet Provision: 4" round / 6" oval bottom-outlet knockout
- System Loading: grate-dependent, up to EN 1433 Class F; select the grate and installation detail for the application

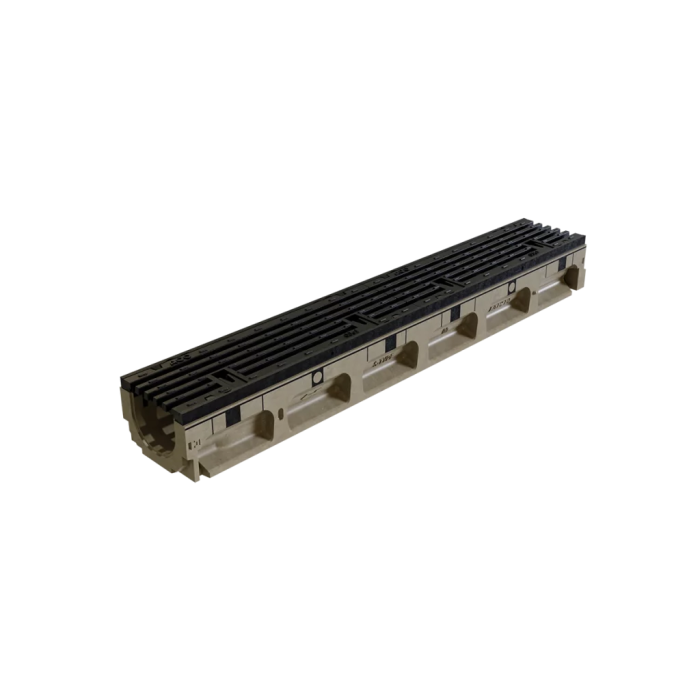

- Media Note: family/system photography is illustrative and may show a compatible grate; this bare channel SKU does not include a grate, so select it separately
Additional Resources
Official ACO Specification Sheet| Brand | ACO |
|---|---|
| Part Number | 67050 |
| Length | 19.69" |
| Width | 6.30" |
