ACO PowerDrain SK1-39 Sloped Trench Drain Channel - 1 Meter

Product Details: ACO PowerDrain SK1-39 Sloped Trench Drain Channel - 1 Meter

The ACO PowerDrain S100K line is a modular heavy-duty drainage system with a clear opening measuring 4" (100 mm). Its polymer-concrete channel body, integral ductile-iron edge rail, partial-radius invert, interconnecting ends, and exterior anchoring keys support a coordinated installation. The installed load class depends on the selected grate and installation detail.

The SK1-39 (ACO part 67039) is a 1-meter sloped section with an invert depth of 11.42-11.61" (290-295 mm) and published weight of 86.0 lbs. Install it in ascending sequence with the other SK1 channels to maintain the 0.5% built-in fall. This section has no factory bottom-outlet knockout; ACO places it on every fifth sloped channel.

Quick Look

• Model: SK1-39; ACO Part Number: 67039
• Length: 39.37" (1000 mm)
• Internal Width: 4" (100 mm); Overall Width: 6.30" (160 mm)
• Invert Depth: 11.42-11.61" (290-295 mm)
• Published Weight: 86.0 lbs
• Channel Body: high-strength polyester polymer concrete
• Edge Rail: integrally cast ductile iron
• Channel Profile: partial-radius invert with male/female interconnecting ends and exterior anchoring keys
• Outlet Provision: no factory bottom-outlet knockout on this section
• System Loading: grate-dependent, up to EN 1433 Class F; select the grate and installation detail for the application

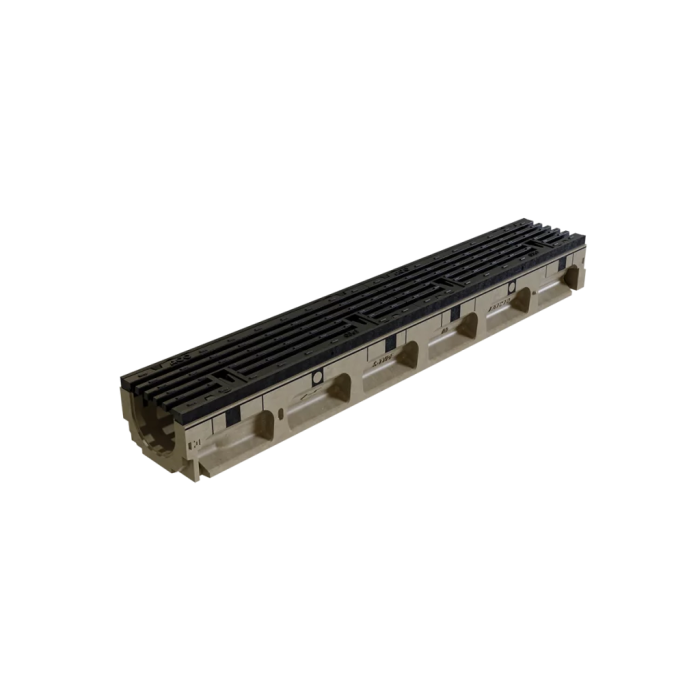

• Media Note: family/system photography is illustrative and may show a compatible grate; this bare channel SKU does not include a grate, so select it separately
