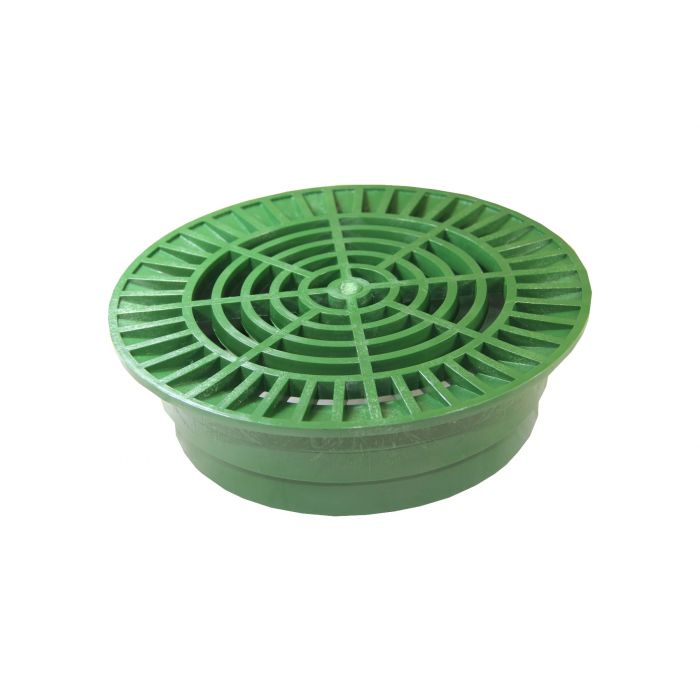

NDS 10" Round Grate - Green

Product Details: NDS 10" Round Grate

As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. Use with Spee-D® Basin, 8” Sewer and Drain Fittings, 8” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe.

Quick Look

• High Density Foam Polyolefin
• 21.57 Open Surface Area
• UV Inhibitors
• Color: Gray (#1060), Green (#1050), Black (#1040)
• Fits 8” SDR-35, SCH-40, Corrugated, Double Wall, Class 125,and Class 63 pipe
• 65.99 GPM Capacity Per Foot
• ADA Compliant
• Product Class: 10ND
• Class A Load Rating (1-60 PSI)

Additional Resources

Installation Instructions
