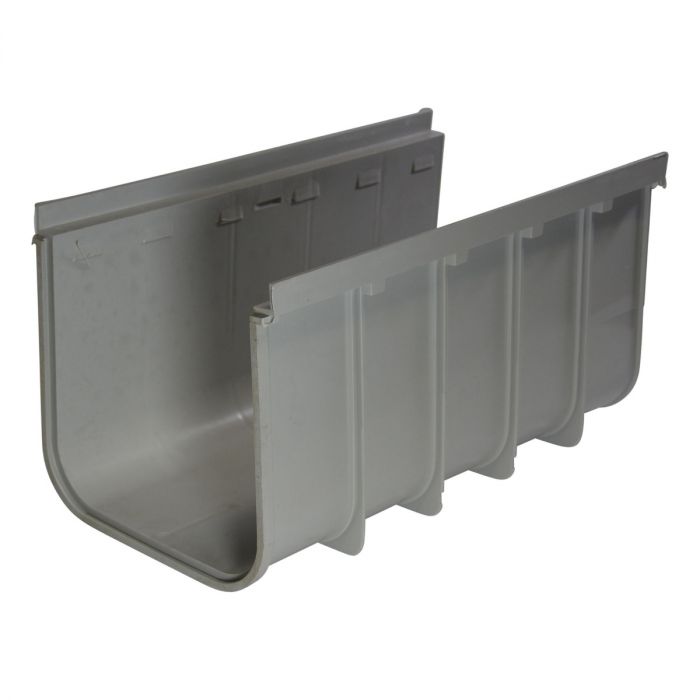

NDS 12" Pro Series Deep Profile Channel Drain

In stock

Dimensions:19-11/16" x 12-1/4" x 10-1/2"

Product Details: NDS 12" Pro Series Deep Profile Channel Drain

A part of the NDS 12" Pro Series Channel Drains Series, this polypropylene piece caps off or acts as an outlet at the end of shallow profile interlocking channels. The channel easily locks into end caps and outlets, providing a customizable drainage installation, which can be made as long as necessary or as short as 4". Quality durability ensures withstanding high impact tire traffic.

Quick Look

  • High Density Polyethylene
  • UV Inhibitors
  • Sections of NDS 12” Pro Series Channel can be connected using the interlocking end joints
  • The NDS 12” Pro Series channels and accessories are sold individually
  • Can hold about the same volume of water as a 12” diameter pipe
  • PVC glue can be used to glue all pieces together
  • Color: Light Grey
  • There are no prefabricated accessories for the 12” Pro Series Channel to make bends, however, the channel can also be cut to any angle using proper equipment such as a miter saw
  • Use with 12" x 20" Grates
  • ADA Compliant
  • Product Class: 25IN
  • First the Grate Security Clip (NDS part # 849) must be inserted into the slot on the side of the channel. The grate is then placed onto the clips and screwed into place
Shop the entire line of NDS 12" Pro Series Drains Products

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 12" Pro Series Deep Profile Channel Drain Technical Specifications
NDS 12" Shallow Profile Channel Drain Technical Specifications
More Information
Part Number 843
Length 19-11/16"
Width 12-1/4"
Height 10-1/2"
Weight 6.00
Color Grey
