NDS 12" Round Grate - Green
Dimensions:Length: 14.19" x Width: 14.19" x Height: 3-5/8"
Color:Gray (#1260), Green (#1250), Black (#1240)
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

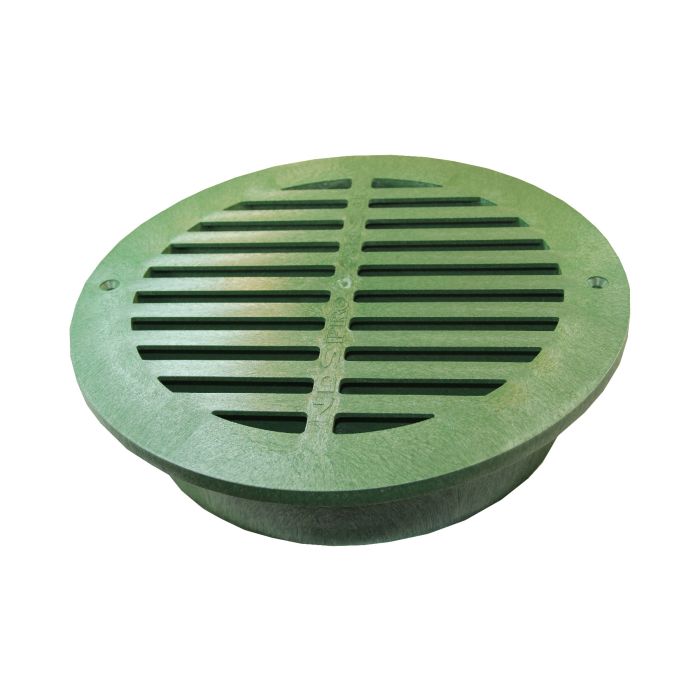

Product Details: NDS 12" Round Grate
NDS round grates provide long-lasting protection against fading and cracking caused by the harsh sun. Unlike other grates, NDS grates are chemical-resistant and rustproof, ensuring they remain in excellent condition even in the toughest outdoor environments. NDS 12" Round Grates are maintenance-free and lightweight, making them easy to install and ideal for outdoor spaces that receive light foot traffic. NDS 12" Round Grated are optimized to collect and direct water away from driveways, patios, and other outdoor areas. With the compatibility with a wide range of drainage systems, including 12” SDR-35, Corrugated, SCH-40, Class 125, & Double-wall pipes. NDS 12" Round Grates are a convenient choice for any drainage project
Quick Look
- Color: Gray (NDS #1260), Green (NDS #1250), Black (NDS #1240)
- Dimensions: 14-3/16" LENGTH x 14-3/16" WIDTH x 3-5/8" HEIGHT
- ADA Compliant
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- Material: UV Protected High-Density Polyethylene (HDPE)
- Use 12” SDR-35, Corrugated, SCH-40, Class 125, & Double-wall pipes
- Grate Openings: 9/16"
- PVC glue can be used to bond all components together
- Grates can be cut
- Will accommodate 140.72 gallons per minute with 1/2” of head
- Suitable for medium-duty traffic when properly installed
- Used for capturing and redirecting excess water to safe locations
Additional Resources
How To Fix A Downspout ProblemNDS 12" Round Grate Technical Specifications
Installation Instructions
NDS Round Grate with Spee-D Basin 2-Outlets using Corrugated Pipe Installation DetailNDS Round Grate with Spee-D Basin 2-Outlets Installation Detail
NDS Round Grate with Spee-D Basin 1-Outlet using Corrugated Pipe Installation Detail
NDS Round Grate with Spee-D Basin 1-Outlet Installation Detail
NDS Round Grate with Corrugated Pipe (Tee) Installation Detail
NDS Round Grate with Sanitary Sewer and Drain Tee Corrugated Pipe Installation Detail
NDS Round Grate with Sanitary Sewer and Drain Tee Installation Detail
NDS Round Grate with Sewer and Drain Elbow Corrugated Pipe Installation Detail
NDS Round Grate with Sewer and Drain Elbow Installation Detail
Brand | NDS |
---|---|
Part Number | 1250 |
Color | Green |
Length | 14.19" |
Width | 14.19" |
Height | 3-5/8" |
Grate Opening | 9/16" |
Open Surface Area | 46.00 square inches |
Gallons Per Minute | 140.72 |
