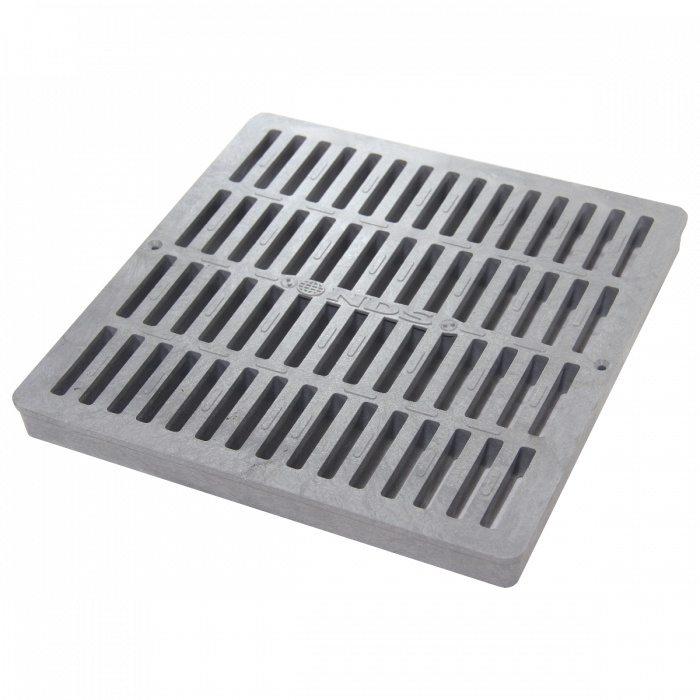

NDS 12" Square Catch Basin Grate

As low as $37.35
In stock
SKU
NDS 1210

Dimensions:L:11-3/4" x W:11-3/4" x H:1-1/8"


Color: #1210 (Grey), #1212 (Green), and #1211 (Black)


Call in directly to (803)-372-0846 for a personalized quote.

Product Details: NDS 12" Square Catch Basin Grate

The 12" Square Catch Basin Grate is part of the NDS drainage system. The catch basins from NDS, paired with their varied lineup of grates, are one of the most practical solutions to a plethora of common drainage problems. Made from a durable, structural foam polyolefin, this grate is the perfect fit for the 12" Catch Basin Series. Along with all other grates, it is both chemical-resistant and rustproof to provide an easy and maintenance-free drainage solution.

Quick Look

  • UV Protected High Density Polyethylene (HDPE) Grate
  • Open Surface Area: 50.76 square inches
  • 155.28 GPM
  • 12 in. Catch Basin Drain Grates are available in a variety of colors, materials, and styles
  • ADA Compliant
  • Load Rating: Class B (61-175 psi)
  • Made to fit 12 in. square catch basins, risers, and low-profile adapters
  • Recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph
  • Designed for use with the NDS 12” Catch Basin Series
Shop the entire line of NDS 12" Catch Basins Products

Additional Resources

How To Stop Water From Puddling
Using NDS Catch Basins to Capture Run-off
How To Choose The Right Size NDS Catch Basin
Installing NDS Catch Basins
NDS 12" Square Catch Basin Grate Technical Specification Sheet
NDS Technical Specifications Sheets: Catch Basin Flow Capacities

Installation Instructions

NDS 12" Catch Basin Installation for Landscape Applications
NDS 12" Catch Basin Installation for Pedestrian and Light Vehicular Traffic Applications
NDS 12" Catch Basin Installation for Vehicular Traffic Applications (Load Class C)
NDS 12" Catch Basin Plumbing Connection
NDS 12" Catch Basin Installation for Landscape Application with Riser
More Information
Part Number NDS 1210
Length 11-3/4"
Width 11-3/4"
Height 1-1/8"
Grate Opening 3/8"
Open Surface Area 50.76 square inches
Gallons Per Minute 155.28
