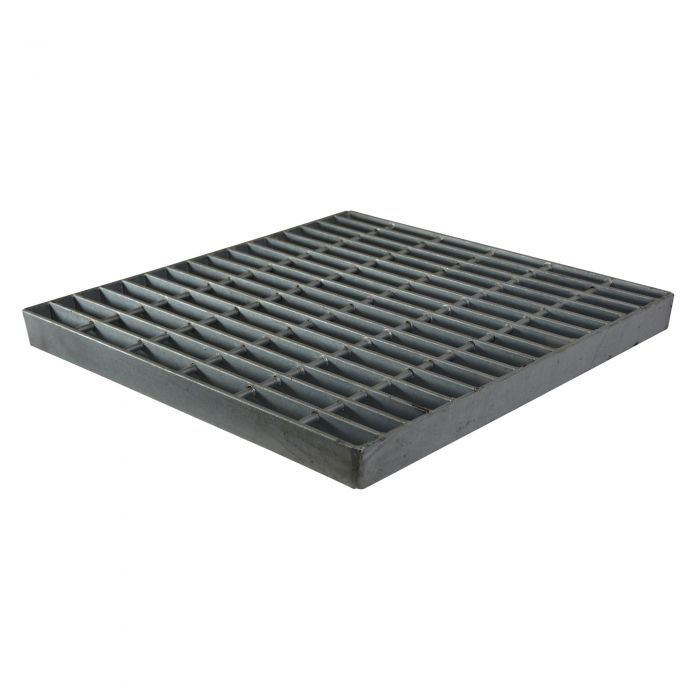

NDS 24" Catch Basin Grate, Galvanized Steel
Dimensions: 23-3/4" x 23-3/4" x 2"
Product Details: NDS 24" Catch Basin Grate, Galvanized Steel
24" Catch Basin Grates a proven alternative to traditional concrete drains with UV inhibitors are used to prevent fading and cracking from the sun, chemical-resistant, rustproof! A 24" Catch Basin Grate is maintenance-free, and also lightweight, and easy to install. 24" Catch Basin Grate is used to help to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic.
- Galvanized Steel
- UV Inhibitor
- Open Surface Area: 332.06. Inches
- Grate Opening: 1-1/4"
- H-20 Load Rating
- Head ( inches) - Max Flow 1â€= 1827.63 GPM
- Class C Load Rated (175-325 Psi)
- Fits: Catch Basin #2400, #2404 and #2418
- Product Class: 10ND
Additional ResourcesHow To Fix A Downspout Problem
NDS 24" Catch Basin Grate, Galvanized Steel Technical Specifications Sheet
How To Use A NDS Catch Basin
NDS Catch Basin Flow Capacities
NDS Catch Basin Invert Table
Installation InstructionsNDS 24" Catch Basin Installation for Landscape Applications
NDS 24" Catch Basin Installation for Pedestrian and Light Vehicular Traffic Applications
NDS 24" Catch Basin Installation for Vehicular Traffic Applications (Load Class C)
NDS 24" Catch Basin Plumbing Connection
NDS 24" Catch Basin Installation for Landscape Application with Riser
