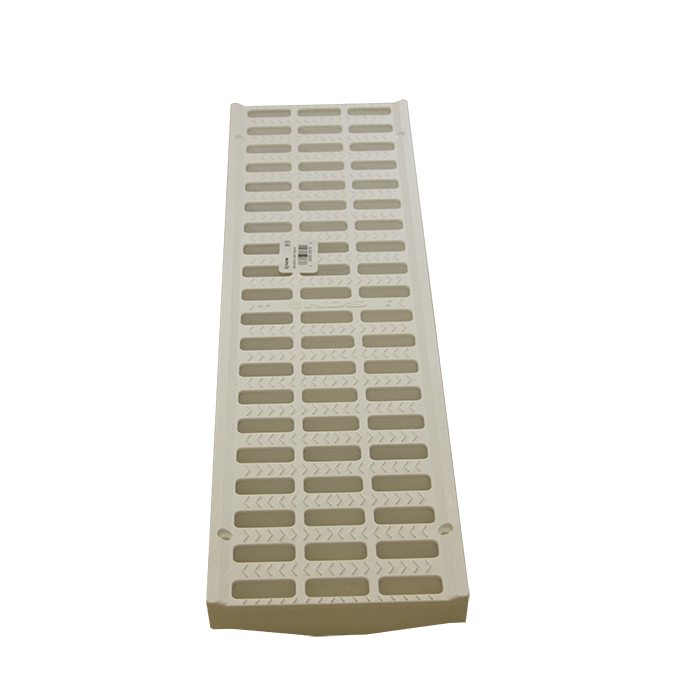

NDS 5" Pro Series Channel Grate - White

$22.31
In stock
SKU
819
  • Buy 10 for $21.19 each and save 5%
Dimensions: Width: 5-1/4" x Length: 19-5/8" x Height: 3/4"
Color: White (#819), Gray (#814), Green (#815), Black (#816), Sand (#817), and Brick Red (#818)

For personalized assistance or a customized quote, call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 5" Pro Series Channel Grate

The NDS 5" Pro Series Channel Grate is the ideal solution for all your drainage needs. The 5" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 5" Pro Series Channel Drain Grates is the perfect solution for all your drainage needs.

Quick Look

  • Compliant with the Americans with Disabilities Act (ADA) standards
  • Material: HDPE (High-Density Polyethylene)
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per grate, screws sold separately)
  • Color: #814 (Light Gray), #815 (Green), #816 (Black), #817 (Sand), #818 (Brick red), #819 (White)
  • Fits: 5” Pro Series Channel, Part# 820 ( takes 1 grate) and Part# 800 ( takes 2 grates)
  • Grate Opening: 1/2” x 1-1/4”
  • Channel grates can be reduced to any lengths
  • Recommended for medium-duty tire traffic
  • Open Surface Area: 23.52 Sq. Inch per Ft
  • 101.75 GPM per foot
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
Shop the entire line of NDS 5" Pro Series Drains Products
Shop the entire line of NDS Pro Series Channel Grates
NDS 5" Pro Series Additional Resources

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 5 Inch Pro Series Grate Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling End Outlet
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling Bottom Outlet Connection
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Wood Member Suspension
More Information
Part Number 819
Color White
Length 19 5/8"
Width 5 1/4"
Grate Opening 3/8" x 1 1/4"
Open Surface Area 23.52 square inches
Gallons Per Minute 71.95
