NDS 7" Square Grate - Black

$10.60
In stock
SKU
771

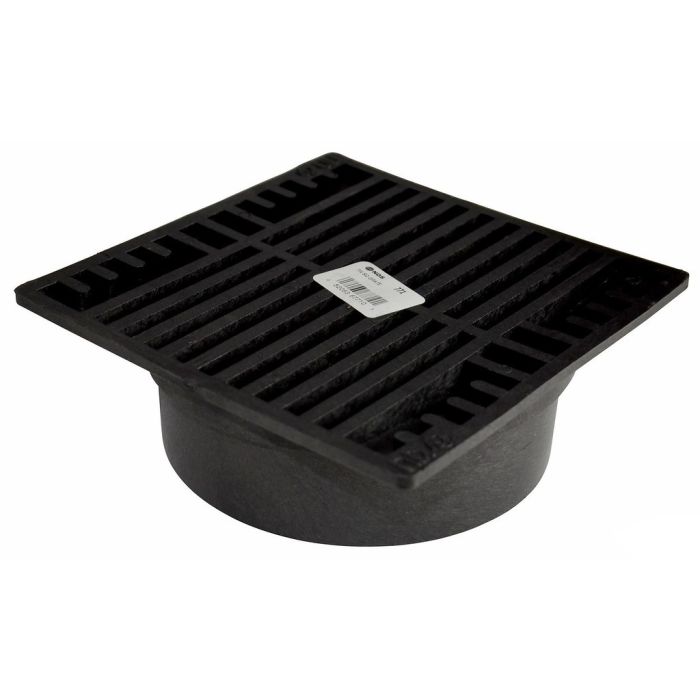

Product Details: NDS 7" Square Grate

The 7" Square Grate is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. Can be used with Spee-D® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe

Quick Look

  • (HDPE) High Density Polypropylene
  • Open Surface Area: 13.60 Sq. Inches
  • UV Inhibitor
  • Grate Opening: 1/4”
  • Use with Spee-D® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe
  • 41.60 GPM Capacity
  • Load Rated : Class A (1-60 PSI)
  • ADA Compliant
  • Product Class: 10ND
Shop our entire category of Square Grate Products

Additional Resources

How To Fix A Downspout Problem
NDS 7" Square Grate Specifications Sheet
How To Use A NDS Drain On Landscapes
More Information
Brand NDS
Part Number 771
Color Black
Length 6.5"
Width 6.86"
Height 2-3/8"
Grate Opening 1/4"
Open Surface Area 13.60" sq.
Gallons Per Minute 41.60 gallons per minute with 1/2” of head.
