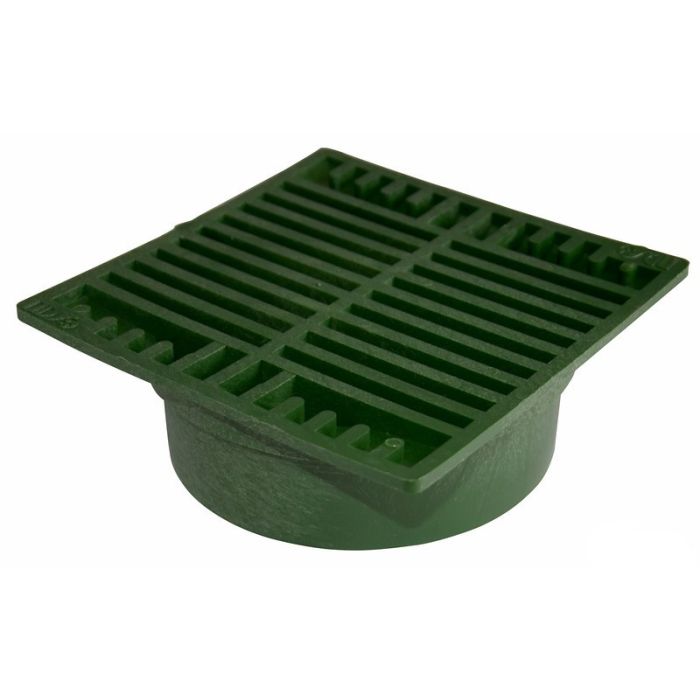

Product Details: NDS 7" Square Grate
The 7" Square Grate is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. Can be used with Spee-D® Basin, 6†Sewer and Drain Fittings, 6†Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe
Quick Look
- (HDPE) High Density Polypropylene
- Open Surface Area: 13.60 Sq. Inches
- UV Inhibitor
- Grate Opening: 1/4â€
- Use with Spee-D® Basin, 6†Sewer and Drain Fittings, 6†Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe
- 41.60 GPM Capacity
- Load Rated : Class A (1-60 PSI)
- ADA Compliant
- Product Class: 10ND
Additional Resources
How To Fix A Downspout ProblemNDS 7" Square Grate Specifications Sheet
How To Use A NDS Drain On Landscapes
| Brand | NDS |
|---|---|
| Part Number | 773 |
| Color | Green |
| Length | 6.5" |
| Width | 6.86" |
| Height | 2-3/8" |
| Grate Opening | 1/4" |
| Open Surface Area | 13.60" sq. |
| Gallons Per Minute | 41.60 gallons per minute with 1/2†of head. |
