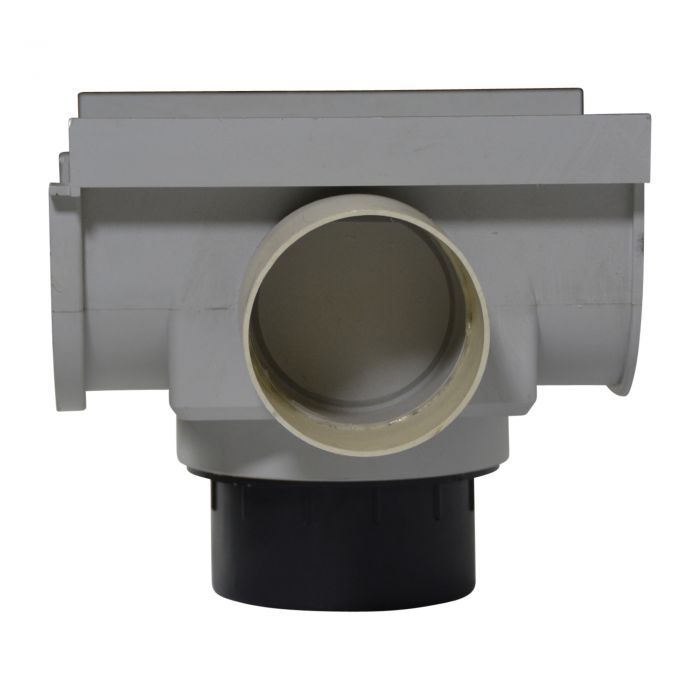

NDS 8" Pro Series Shallow Profile Side Outlet

$88.28
In stock
SKU
832
,p>Dimensions:Length: 8-1/4" Height: 5-1/4"


Call in directly to 803-324-3225 for a personalized quote.

Product Details: NDS 8" Pro Series Shallow Profile Side Outlet

8" Pro Series Shallow Profile Side Outlet allows the ability for a channel to be as long as needed. Pro Series Shallow Profile Side Outlets are able to reduce to lengths as short as 4" for smaller, interlocking sections

Quick Look

  • UV Inhibitors
  • High Density Polyethylene
  • Bottom Outlet fits 3" Sewer & Drain Fittings and 4" Sewer & Drain Pipe
  • ADA Compliant
  • Use with NDS 8” Shallow Profile Pro Series Channels
  • Sides: 1-1/2” SCH-40 pipe
  • Product Class: 25IN
  • Fits: Bottom: 3” & 4” Sewer and Drain fittings, 3” SDR-32.5 Class 125, & SDR-41 Class 100 pipe,
Shop the entire line of NDS 8" Pro Series Drains Products NDS 8" Pro Series FAQS

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 8" Pro Series Shallow Profile Side Outlet Technical Specifications

Installation Instructions

NDS 8" Pro Series Installation , 90 Intersection Detail
NDS 8" Pro Series Installation, Pedestrian Traffic Installation Rebar Tie Down 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Landscape Traffic 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Brick Rebar Suspension
NDS 8" Pro Series Channel Drain Tee Connection Installation
NDS 8" Pro Series Channel Drain Intersection Connection End Outlet
NDS 8" Pro Series Channel Drain Installation Detail Load Class C 6" Encasement CMU Rebar Suspension
NDS 8" Pro Series Channel Drain Plumbing Connection, 3" End Outlet Detail
NDS 8" Pro Series Channel Drain Plumbing Connection, 4" End Outlet Detail
NDS Channel Drain Installation Guide
More Information
Part Number 832
Color Grey
Width 5-1/4"
Length 7-7/8"
