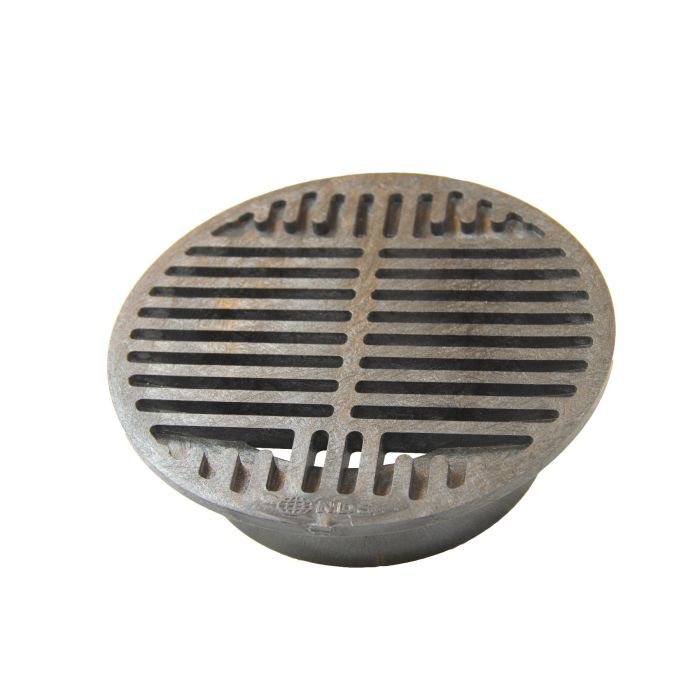

NDS 8" Round Grate - Black

In stock

Product Details: NDS 8" Round Grate

As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. Use with Spee-D® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe.

Quick Look

  • High Density Foam Polyolefin
  • 11.50 Open Surface Area
  • UV Inhibitors
  • Fits Spee-D basin, 6" sewer and drain pipe and fittings and 6" corrugated pipe
  • 35.18 GPM Capacity Per Foot
  • ADA Compliant
  • Product Class: 10ND
  • Class A Load Rated (1-60 psi)
Shop our entire variety of Round Grate Products

Additional Resources

How To Fix A Downspout Problem
NDS 8" Round Grate Technical Specifications
More Information
Part Number 10
Color Black
Length 7 3/4"
Width 5 3/4" at bottom opening
Height 2 1/2"
Grate Opening 5/16"
Open Surface Area 11.5 square inches
Gallons Per Minute 35.18
