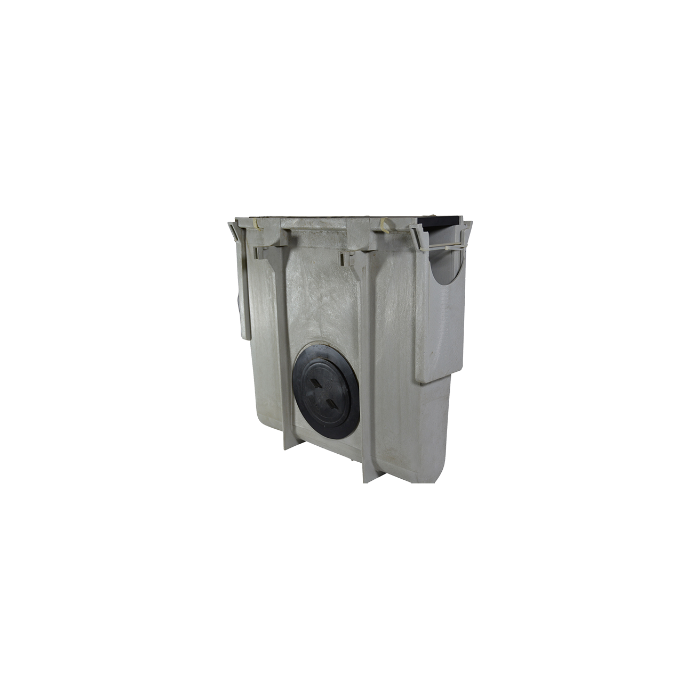

NDS Dura Slope In-Line Catch Basin

$176.33
In stock
SKU
DS-340
  • Buy 2 for $172.04 each and save 2%

Dimensions:L:24" x W:6-5/8" x H:25"


Call in directly to 803-324-3225 for a personalized quote.

Product Details: NDS Dura Slope In-Line Catch Basin

NDS Dura Slope trench drain system consists of neutral and pre-sloped sections of the trench drain. Manufactured from High-density polyethylene, NDS Dura Slope Trench Drains offers a dependable alternative to concrete channels that will save time all while reducing the cost of installation. The NDS Dura Slope Trench Drain system consists of lightweight, modular sections for easier handling and installation causing a reduced price for freight to the site. Unlike other Dura Slope Trench Drains, the Dura Slope In-Line Catch Basin is designed with a built-in slope of 0.7% that allows optimal flow rates to be maintained system-wide. NDS Dura Slope Trench offers many features such as including a ProFit locking system that locks the grate to the integral frame and supports the trench drain during installation. A DuraLoc integral joint lock is also used to prevent joint movement during installation, no extra clamps or screws are needed! Also included are Interlocking tongue and groove joints and a bottom outlet for secure alignment and easy installation on each channel section. The NDS Dura Slope catch basin is 2 feet long and 2 feet deep with an outlet on both sides of the basin. One Universal Adapter Plug, one blank grate insert, and two grate screws are included with each Dura Slope™ in-line catch basin. The NDS universal basin outlets are used to adapt the catch basin to 3”, 4”, 6”, and 8” pipe

Quick Look

  • UV Inhibitors
  • DS-340 replaces DS-140 (DS-140 will not work with channels DS-090N to DS-100 and DS-113 or deeper
  • NDS Dura Slope In-Line Catch Basin are equipped with two outlets for 3", 4", 6" or 8" Pipe
  • DS-240 Only Works with DS-340 Catch Basin
  • Requires use of #1243, #1245, #1266, #1206, or #1888 Universal Outlets to connect discharge pipe to trench drain
  • One Universal Adapter Plug, one blank grate insert and two grate screws are included with each Dura Slopeâ„¢ in-line catch basin
  • DS-240 does not work with DS-200 Frame
  • High Density Polyethylene (HDPE)
  • ADA Compliant
  • Product Class: 25DS
Shop the entire line of NDS Dura Slope Products NDS Dura Slope FAQS

Additional Resources

How To Install A NDS Dura Slope Channel Drain
NDS Dura Slope In-Line Catch Basin Technical Specifications
NDS Dura Slope Trench Drain Catalog
NDS Dura Slope Channel Drain Specification Video
NDS Dura Slope Channel Drain On A Work Site
NDS Dura Slope Installation Manual

Installation Instructions

NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension With Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Wood Member Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Wood Member Suspension Method
NDS Dura Slope Trench Drain Installation Detail Load Class D 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Wood Member Suspension Method
More Information
Part Number DS-340
Color Gray
Width 6-5/8"
Length 24"
