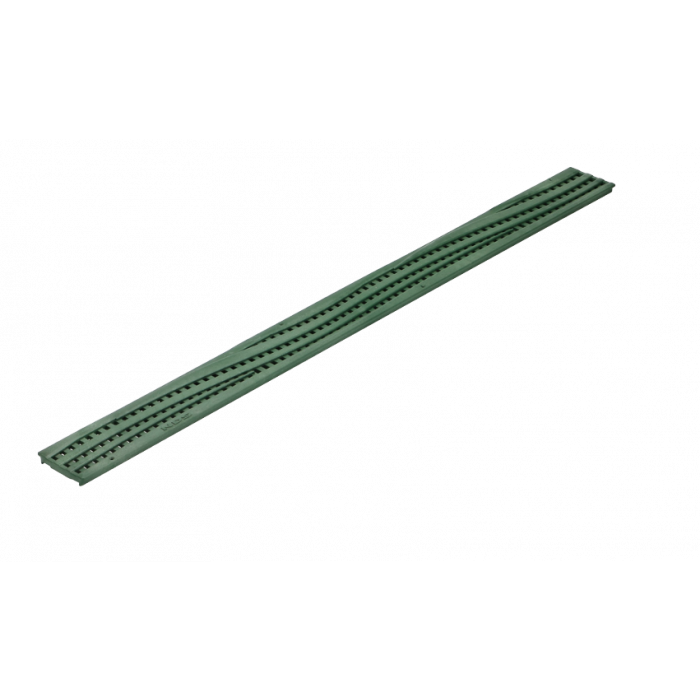

NDS Mini Channel Decorative Wave Grate - Green

$21.98
Out of stock
SKU
555GR
  • Buy 16 for $20.88 each and save 5%
  • Buy 48 for $20.44 each and save 7%

Dimensions: Length: 36" x Width:3.08" x Height: .524"


Color: #555 (Black), #555GY (Gray), #555GR (Green), #555S (Sand)


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Mini Channel Decorative Wave Grate

NDS Mini Channel Decorative Wave Grates is part of the NDS Mini Channel drainage system. Mini Channel grates are designed to match any hardscape and come in four colors: Black (#555), Grey (#555GY), Green (#555GR), and Sand/Tan (#555S). The channel grates fit securely into the channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel Decorative Wave Grates, protecting your investment with high-quality, easily configurable drainage is simple and stylish.

Quick Look

  • Use With NDS Mini Channel Drain (#500)
  • Color Choices: Black (#555), Grey (#555GY), Green (#555GR), and Sand/Tan (#555S)
  • 17.20" Sq. Open Space
  • Dimensions: 36" LENGTH x 3.08" WIDTH
  • Will accommodate 52.62 gallons per minute per foot with 1/2” of head
  • ADA Compliant
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (screws sold separately)
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)
Shop the entire line of NDS Mini Channel Products
NDS Mini Channel FAQS

Additional Resources

NDS Mini Channel Decorative Wave Grate : Technical Specifications
Solution To Stormwaters
How To Install A NDS Mini Channel Drain
NDS Mini Channel CAD Details : Pool Deck Installation
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Mini Channel CAD Details : Light Vehicular Traffic Installation
NDS Mini Channel CAD Details : Light Vehicular Traffic Installation
NDS Mini Channel CAD Details : Typical Pedestrian Traffic Installation Installation
NDS Channel Drain Installation Guide
More Information
Part Number NDS 555
Color Green
Length 36"
Width 3.08"
Grate Opening 17.20 sq. inch open space
