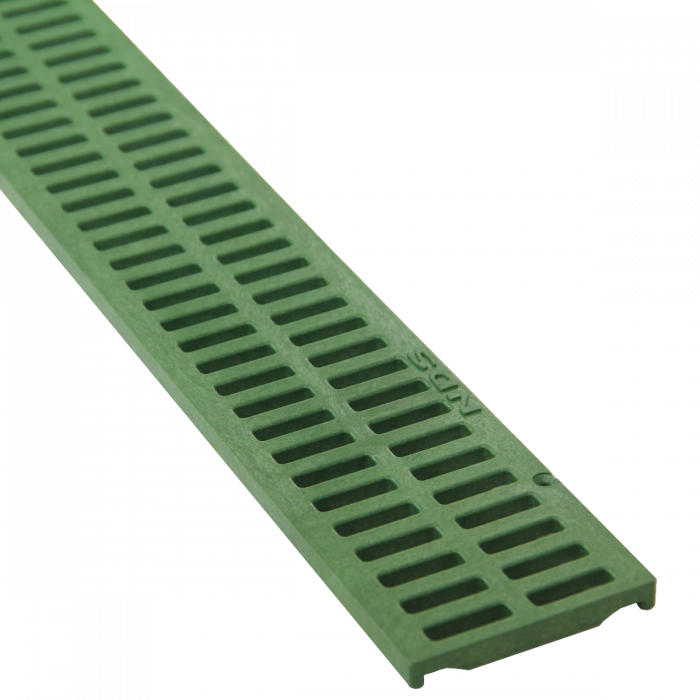

NDS Mini Channel Grate - Green
- Buy 16 for $15.90 each and save 5%
Dimensions: Length: 36" x Width: 2.75" x Height: 1/4"
Colors: White (#540), Gray (#541), Green (#542), Black (#543), Sand (#544), and Brick Red (#551)
For personalized assistance or a customized quote, call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Mini Channel Grate
NDS Mini Channel grates are a crucial part of the NDS Mini Channel drainage system. Mini Channel grates are designed to match any hardscape and come in six colors: White (#540), Gray (#541), Green (#542), Sand/Tan (#544), Red (#551), and Black (#543). The channel grates fit securely into the 6 FT Mini channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel, protecting your investment with high-quality, easily configurable drainage is simple and stylish.
Quick Look
- Use With NDS Mini Channel Drain (#500)
- Color Choices: White (#540), Gray (#541), Green (#542), Black (#543), Sand (#544), and Brick Red (#551)
- 1/4" x 5/16" Grate Opening
- Dimensions: 36" LENGTH x 2.75" WIDTH
- Will accommodate 30.29 gallons per minute per foot with 1/2” of head
- ADA Compliant
- Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (4 per grate, screws sold separately
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- Material: UV Protected High-Density Polyethylene (HDPE)
Additional Information
NDS Mini Channel Drain Grates - Technical SpecificationsNDS Mini Channel CAD Details : Pool Deck Installation
NDS Mini Channel CAD Details : Light Vehicular Traffic Installation
NDS Mini Channel CAD Details : Light Vehicular Traffic Installation
NDS Mini Channel CAD Details : Typical Pedestrian Traffic Installation Installation
Part Number | 542 |
---|---|
Color | Green |
Length | 36" |
Width | 2 3/4" |
Grate Opening | 1/4" x 5/16" |
Open Surface Area | 9.90 square inches per foot |
Gallons Per Minute | 30.29 |
