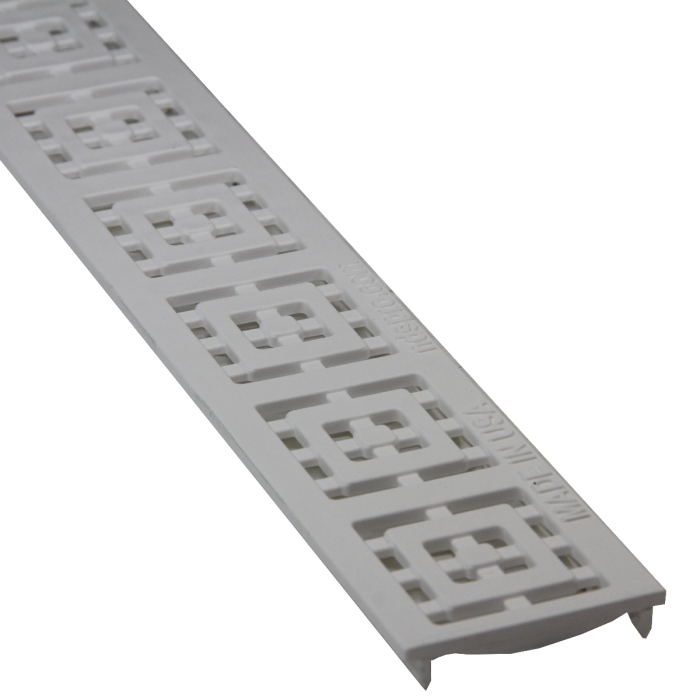

NDS Slim Channel Grate Square - White

In stock

Dimensions:Length: 36" x Width: 2-1/4"

Color: #9251 (White), #9253 (Gray), and #9252 (Sand)

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Slim Channel Grate Square

NDS Slim Channel Grates is part of the NDS Slim Channel drainage system. The NDS Slim Channel is the latest and most innovative channel drain product from NDS. It combines the best features of the NDS Micro and Mini Channel series and has a less-pronounced flying-buttress design. The internal couplings are inspired by the Micro Channel series and there are many grating options available to match your hardscape. The NDS Slim Channel Grates Square comes in 3 colors: White (#9251), Grey (#9253), and Sand/Tan (#9252). The Slim Channel series by NDS interfaces with Schedule 40 PVC pipe and fittings.

Quick Look

  • Use With NDS Slim Channel Drain (#9206)
  • Color Choices: White (#9251), Grey (#9253), and Sand/Tan (#9252)
  • Flow Capacity: 17.53 GPM / linear foot
  • Dimensions: 36" Length x 2.25" Width
  • ADA Compliant
  • Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)

NDS Slim Channel FAQS

Additional Information

NDS Slim Channel Catalog
NDS Product Catalog
NDS Slim Channel - Technical Specifications
NDS Channel Grate Outlet Flow Capacities
Channel Drain FAQS
Load Recommendation Guide

Installation Instructions

NDS Slim Channel Landscape Traffic Installation
NDS Slim Channel Pavers Installation
NDS Slim Channel Slab Installation
More Information
Part Number 9251
Color White
Length 3'
Width 2-1/4"
Grate Opening .246"
Open Surface Area 7.09 sq. in / linear foot
Gallons Per Minute 21.69 GPM / linear foot
