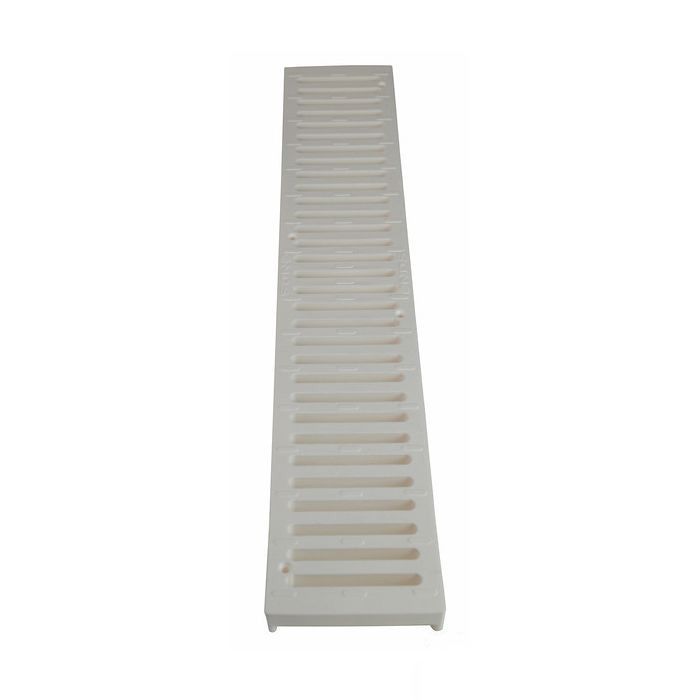

NDS Spee-D Channel Grate - White

$22.65
In stock
SKU
240
  • Buy 12 for $21.52 each and save 5%
  • Buy 48 for $21.06 each and save 7%

Dimensions: Length: 24" x Width: 4-1/8" x Height: 3/4"


Color: #240 (White), #241 (Gray), #242 (Green), #243 ( Black), #244 (Sand) , and #251 (Brick Red)


For personalized assistance or a customized quote, call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Spee-D Channel Grate

The NDS Spee-D Channel Grate comes in six colors: White (#240), Gray (#241), Green (#242), Black (#243), Sand (#244), and Brick Red (#251). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today! Part of NDS Spee-D Series

Quick Look

  • Install with Four FH #8 x 1" screws, per grate (Sold Separately)
  • ADA Compliant
  • Colors: White (#240), Gray (#241), Green (#242), Black (#243), Sand (#244), and Brick Red (#251)
  • Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
  • Grate Opening: 3/8” x 3-1/4”
  • Dimensions: 24" LENGTH x 4-1/8" WIDTH x 3/4" Height
  • Open Surface Area: 16.92 Sq. Inch per Ft.
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • Equipped with UV Inhibitors
  • Material: UV Protected High-Density Polyethylene (HDPE)
Shop the entire line of NDS Spee-D Channel Products
NDS Spee-D Channel FAQS and Resources

Additional Resources

NDS Spee-D Channel Grate Technical Specifications
NDS Spee-D Channel Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Spee-D Channel Drain Light Vehicular Traffic Installation - Pavers
NDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
More Information
Brand NDS
Part Number 240
Color White
Length 24"
Width 4 1/8"
Grate Opening 3/8" x 3 1/4"
Open Surface Area 16.76
Gallons Per Minute 51.27
