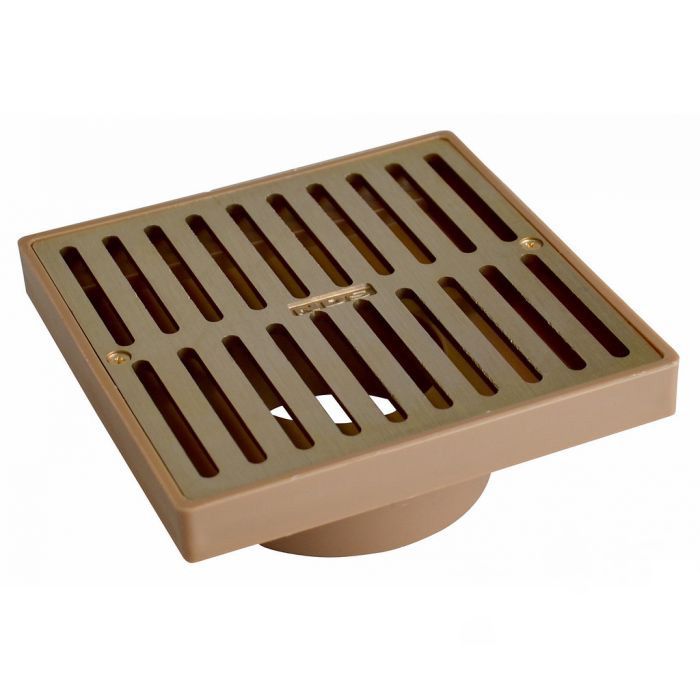

NDS Square Grate with Styrene Adapter, 6" Satin Brass, 3" or 4"

$173.94
In stock
SKU
920B

Dimensions: 6-1/8" x 6-1/8" x 2-3/4"

Product Details: NDS Square Grate with Styrene Adapter, 6" Satin Brass, 3" or 4"

The NDS Square Grate with Styrene Adapter, 6" Satin Brass, 3" or 4" grate is a durable, maintenance-free grate that provides a pleasant aesthetic to any hardscape. The grate is rated for Class A loads (1-60 PSI) and can accommodate 8.2 gallons of water per minute, making it a perfect choice to divert water away from problem areas. The PVC collar fits 3" drain pipe and 4" sewer and drains fittings, allowing it to be easily adapted to any system. This pleasant aesthetic fits many design choices at a desirable price range, making it a no-brainer for your next project!

Quick Look

  • UV inhibitors
  • Satin Brass
  • 3/8" Grate Opening
  • Class A Load Rated (1-60 PSI)
  • Opening: 11.60 in² open space
  • Will accommodate 35.49 gallons per minute with 1/2” of head
  • Fits: 3”: Corrugated, ABS, Sch-40, ASTM D-2729, Sch-80, Class 125, Class 100 pipe 4: SDR-35, Double wall, ASTM D-2729, Class 100 pipe
  • ADA Compliant
  • Product Class: 20ND
Shop our entire category of Square Grate Products
Shop the entire line of Brass Channel Grate Products

Additional Resources

How to Improve A Area Drain
NDS Square Grate with Styrene Adapter, 6" Satin Brass, 3" or 4" Technical Specifications

Installation Instructions

NDS Square Grate with Adaptor Corrugated Elbow Installation Detail
NDS Square Grate with Adaptor Corrugated Tee Installation Detail
NDS Square Grate with Adaptor Elbow Installation Detail
NDS Square Grate with Adaptor Tee Installation Detail
NDS Square Grate with Sanitary Sewer and Drain Tee Corrugated Installation Detail
NDS Square Grate with Sanitary Sewer and Drain Tee Installation Detail
NDS Square Grate with Sediment Elbow Catch Basin Tee Installation Detail
NDS Square Grate with Sewer and Drain Elbow Corrugated Installation Detail
NDS Square Grate with Sewer and Drain Elbow Installation Detail
NDS Square Grate with Spee-D Basin Corrugated Installation Detail
NDS Square Grate with Spee-D Basin Tee Installation Detail
NDS Square Grate with Spee-D Basin Installation Detail
More Information
Part Number 920B
Length 6.13 in.
Width 6.13 in.
Height 2-3/4"
Grate Opening 3/8"
Open Surface Area 11.60
Gallons Per Minute 35.49
