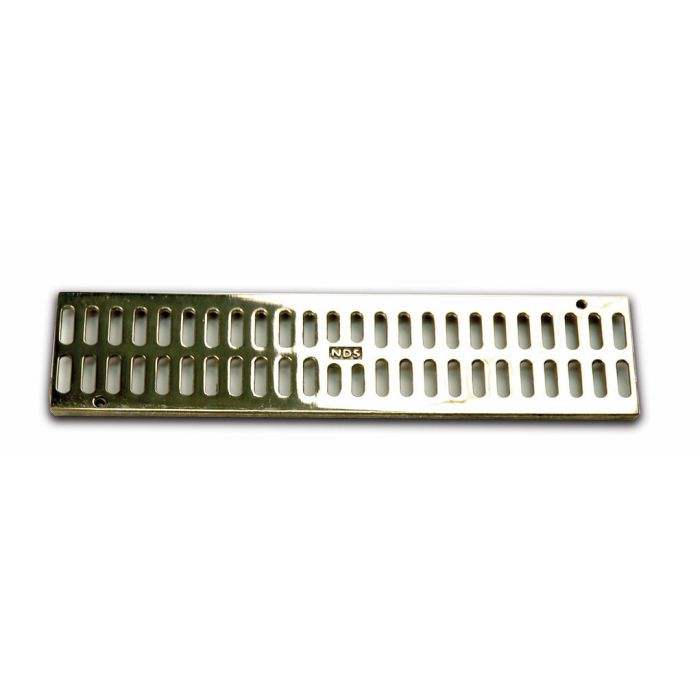

NDS Mini Channel Grate, Polished Brass (12" Length)
Dimensions:Length: 12" x Width: 2-13/16" x Height: 3/8"
For personalized assistance or a customized quote, Call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Mini Channel Grate, 12" Polished Brass
NDS NDS Mini Channel Grate - 12" Polished Brass grates are a crucial part of the NDS Mini Channel drainage system. The channel grates fit securely into the channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel, protecting your investment with high-quality, easily configurable drainage is simple and stylish.
Quick Look
- Use With NDS Mini Channel Drain (#500)
- 1/4" x 7/8" Grate Opening
- Dimensions: 12" LENGTH x 2-13/16" WIDTH
- Will accommodate 30.29 gallons per minute per foot with 1/2” of head
- ADA Compliant
- Channel Grates can be screwed to the channel using brass Screws, Phillips Head #4 x 5/8” screws (2 per grate, screws included)
- Load Recommendation: Class A (01-60 PSI / 3,372 lbs per foot)
- Material: Polished Brass
Shop the entire line of Brass Channel Grate Products
NDS Mini Channel FAQS and Resources
Additional Resources
NDS Mini Channel Grate, 12" Polished Brass Technical SpecificationsSolution To Stormwaters
How To Install A NDS Mini Channel Drain
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Mini Channel Drain Typical Landscape Traffic InstallationNDS Mini Channel Drain Typical Light Vehicular Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation Pavers
NDS Mini Channel Drain Typical Pedestrian Traffic Installation
NDS Mini Channel Drain Pool Deck Installation Detail
NDS Mini Channel Drain End Outlet Installation Detail
NDS Mini Channel Drain Bottom Outlet Installation Detail
NDS Channel Drain Installation Guide
Brand | NDS |
---|---|
Part Number | 553PB |
Length | 12" |
Width | 2-13/16" |
Grate Opening | 1/4" x 7/8" |
Open Surface Area | 9.20 Square Inches Open Space Per Foot |
Gallons Per Minute | 28.14 GPM |
