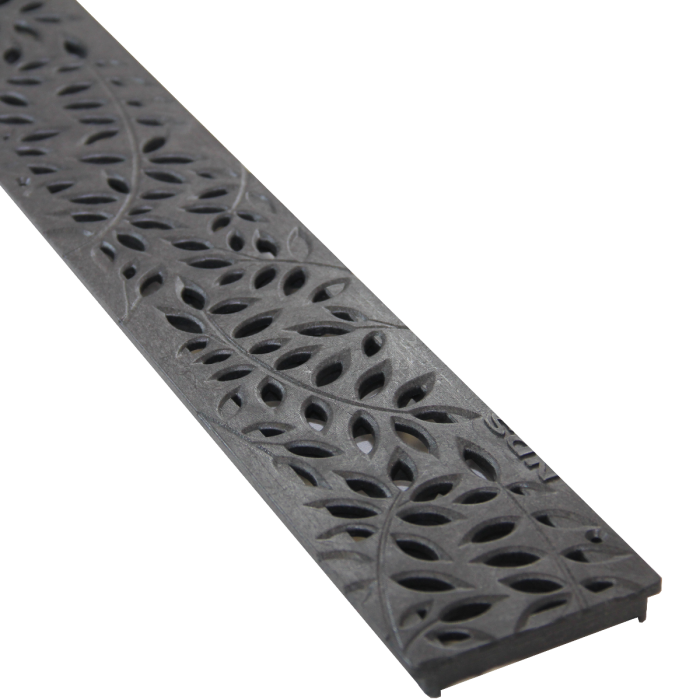

NDS Mini Channel Decorative Botanical Grate
Dimensions: Length: 36" x Width: 3.08" x Height: 0.52"
Color: #554 (Black), #554GY (Gray), #554GR (Green), #554S (Sand)
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Mini Channel Decorative Botanical Grate
NDS Mini Channel Decorative Botanical Grates are part of the NDS Mini Channel drainage system. Mini Channel grates are designed to match any hardscape and come in four colors: Black (#554), Grey (#554GY), Green (#554GR), and Sand/Tan (#554S). The channel grates fit securely into the channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel Decorative Botanical Grates, protecting your investment with high-quality, easily configurable drainage is simple and stylish.
Quick Look
- Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (screws sold separately)
- Use With NDS Mini Channel Drain (#500)
- Color Choices: Black (#554), Grey (#554GY), Green (#554GR), and Sand/Tan (#554S)
- 16.32" Sq. Open Space
- Will accommodate 49.93 gallons per minute per foot with 1/2” of head
- ADA Compliant
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- Material: UV Protected High-Density Polyethylene (HDPE)
NDS Mini Channel FAQS
Additional Resources
ADA Compliance and Your Drainage: Urban Planning for AccessibilityEstimating Runoff For Drainage Systems
Load Rating Recommendation Guide
NDS Mini Channel Decorative Botanical Grate Technical Specifications
How To Install A NDS Mini-Channel
Installation Instructions
NDS Mini Channel Drain Typical Landscape Traffic InstallationNDS Mini Channel Drain Typical Light Vehicular Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation Pavers
NDS Mini Channel Drain Typical Pedestrian Traffic Installation
NDS Mini Channel Drain Pool Deck Installation Detail
NDS Mini Channel Drain End Outlet Installation Detail
NDS Mini Channel Drain Bottom Outlet Installation Detail
NDS Channel Drain Installation Guide
| Brand | NDS |
|---|---|
| Part Number | NDS 554 |
| Length | 36" |
| Width | 3.08" |
| Grate Opening | 16.32" sq. Open Space |
| Open Surface Area | 5.44 square inches |
| Gallons Per Minute | Will accommodate 49.93 GPM with 1/2" of head |
