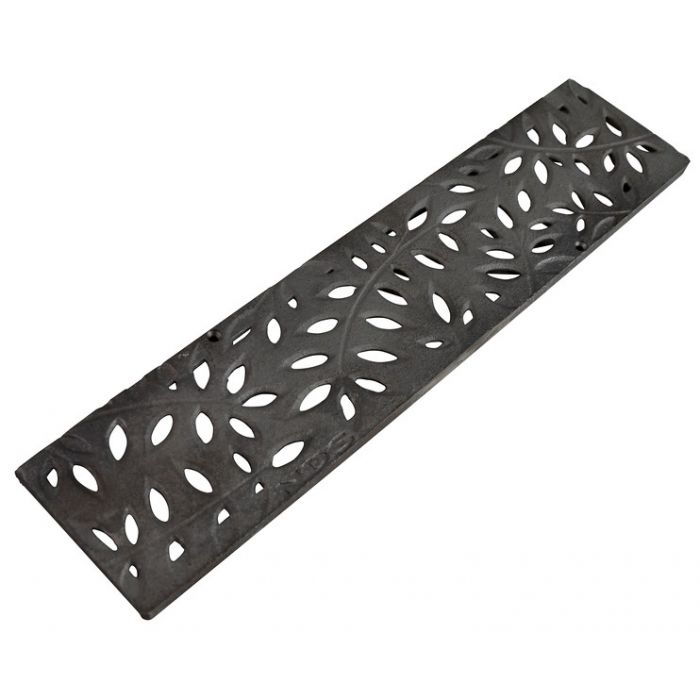

NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical)

$47.02
In stock
SKU
554CI
  • Buy 5 for $42.45 each and save 10%

Dimensions: W:2.75" x L:12"


Call in directly to (803)-372-0846 for a personalize quote.

Product Details: NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical)

The 12" Mini Channel Grate - Cast Iron (Decorative Botanical) is designed to meet today's demand for products that are as beautiful as they are functional. NDS decorative grates are consumer-tested designs and offer a range of colors and materials ideal for any application or setting.

Quick Look

  • Raw Cast Iron
  • Class B Load Rated
  • ADA Compliant
  • Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (screws sold separately)
  • Grate Opening: 4.93" Sq. Open Space
  • Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph
  • Will accommodate 15.08 gallons per minute with 1/2" of head
  • Use With NDS Mini Channel Drain (#500)
Shop the entire line of NDS Mini Channel Products
NDS Mini Channel Additional Resources

Additional Resources

NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical) Technical Specifications
Solution To Stormwaters
Will NDS Iron Metal Grates Rust?
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Mini Channel Drain Typical Landscape Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation Pavers
NDS Mini Channel Drain Typical Pedestrian Traffic Installation
NDS Mini Channel Drain Pool Deck Installation Detail
NDS Mini Channel Drain End Outlet Installation Detail
NDS Mini Channel Drain Bottom Outlet Installation Detail
NDS Channel Drain Installation Guide
More Information
Part Number 554CI
Color Black
Length 12"
Width 2.75"
Grate Opening 15.08 GPM
Open Surface Area 4.93
Gallons Per Minute 15.08
