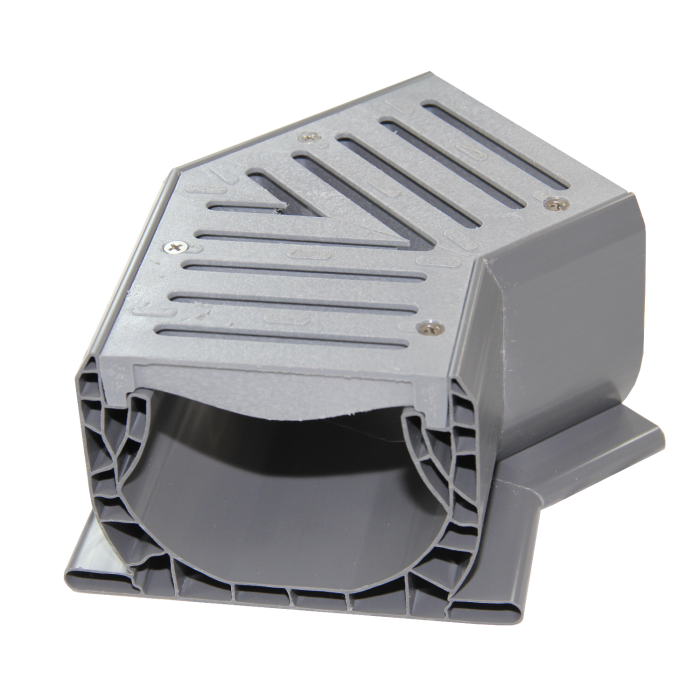

NDS Spee-D Channel Fabricated 45-Degree Corner And Grate

$63.77
In stock
SKU
2301

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Spee-D Channel Fabricated 45-Degree Corner And Grate

The Spee-D Channel Fabricated 45-Degree Corner And Grate is part of the modular NDS Spee-D Drainage System. The product is constructed with durable lightweight and easy-to-install PVC material. Each Spee-D Channel Fabricated 45-Degree Corner And Grate are chemically resistant and rustproof. Spee-D Channel Fabricated 45-Degree Corner And Grates are a proven better alternative to traditional concrete drains that can be used for commercial as well as residential applications.

Quick Look

  • Material: High Density Foam Polyolefin
  • Sections of Spee-D Channel can be connected together using the either the Channel Strainer Coupling (NDS part # 245) or the Channel Coupling (NDS part # 248)
  • Equipped with UV Inhibitors
  • Chemically resistant, rustproof and maintenance-free
  • ADA Compliant
  • The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete
  • Create a water-tight connection between channels and from outlet to pipe using solvent-weld PVC glue
  • The channel itself will hold about the same volume of water as a 4” diameter pipe
  • NDS part # 245 connects to 2” schedule 40 pipe and part # 249 connects to both 3” sewer and drain pipe and 4” sewer and drain fittings
  • Use with Spee-D 45º and 90º Elbows, Tees, Crosses, and Outlets to customize your layout
  • Load Recommendation: Class B Load Rated (61-175 PSI)
  • Spee-D Channel is available in 4 foot and 10 foot sections. The channel can be easily cut to any length. Call In Directly for our NDS 10 FT Spee-D Channel Drain Pricing
Shop the entire line of NDS Spee-D Channel Products
NDS Spee-D Channel FAQS and Resources

Additional Resources

How to install an NDS Spee-D or Mini channel
Installing NDS Channel Drains
Improving your drainage system with the NDS Spee-D Channel
How Do I Choose The Right Channel Drain For My Drainage System?
NDS Technical Specifications Sheet: NDS Spee-D Channel Drain Accessories
Improving A Drainage System With The NDS Spee-D Channel

Installation Instructions

NDS Spee-D Channel Drain Light Vehicular Traffic Installation - Pavers
NDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
More Information
Brand NDS
Part Number 2301
Color Gray
Width 7-1/16"
Length 8"
