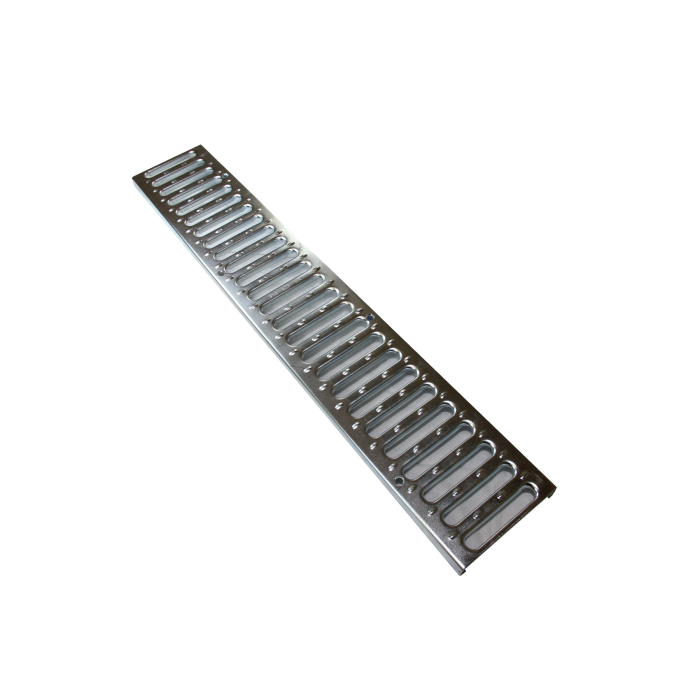

NDS Spee-D Galvanized Channel Grate

$33.39
In stock
SKU
254
  • Buy 12 for $31.72 each and save 5%
  • Buy 36 for $31.05 each and save 7%

Dimensions: Length: 24" x Width: 4-1/8" x Height: 3/4"


For personalized assistance or a customized quote, Call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Spee-D Galvanized Channel Grate

The NDS Spee-D Galvanized Channel Grate is part of the NDS Spee-D drainage system. Spee-D Channel Drains are ideal for driveways, large decks, and commercial areas. Adequate in everything from patios to light vehicular traffic areas. NDS galvanized steel grates channel drains are the ideal solution when you need strength and performance. All with the classic beauty and finish of the steel. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install.

Quick Look

  • Material: Galvanized Steel
  • Sections of Spee-D Channel can be connected together using the either the Channel Strainer Coupling (NDS part # 245) or the Channel Coupling (NDS part # 248)
  • UV Inhibitors
  • Chemically resistant, rustproof and maintenance-free
  • ADA Compliant
  • The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete
  • Create a water-tight connection between channels and from outlet to pipe using solvent-weld PVC glue
  • The channel itself will hold about the same volume of water as a 4” diameter pipe
  • NDS part # 245 connects to 2” schedule 40 pipe and part # 249 connects to both 3” sewer and drain pipe and 4” sewer and drain fittings
  • Use with Spee-D drainage products to customize your layout
  • Class B Load Rated (61-175 PSI)
  • Spee-D Channel is available in 4 foot and 10 foot sections. The channel can be easily cut to any length. Call In Directly for our NDS 10 FT Spee-D Channel Drain Pricing
  • Install with Four FH #8 x 1 in. screws (Sold Separately)
Shop the entire line of NDS Spee-D Channel Products NDS Spee-D FAQS

Additional Resources

NDS Spee-D Galvanized Channel Grate Sells Sheet
NDS Spee-D Channel Technical Specifications
NDS Spee-D Galvanized Channel Grate Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Spee-D Channel Drain Light Vehicular Traffic Installation - Pavers
NDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
More Information
Part Number 254
Color Silver
Length 24"
Width 4-1/8"
Grate Opening 0.45" x 2.85"
Open Surface Area 16.1 sq. in. per ft.
Gallons Per Minute 89.8 GPM
