NDS 5" Pro Series Deep Profile Grate and Channel Drain 45-Degree Elbow

$72.42
In stock
SKU
862
  • Buy 4 for $66.73 each and save 8%

Dimensions: Length: 9-1/8" x Width: 9-1/8"


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 5" Pro Series Deep Profile Grate and Channel Drain 45-Degree Elbow

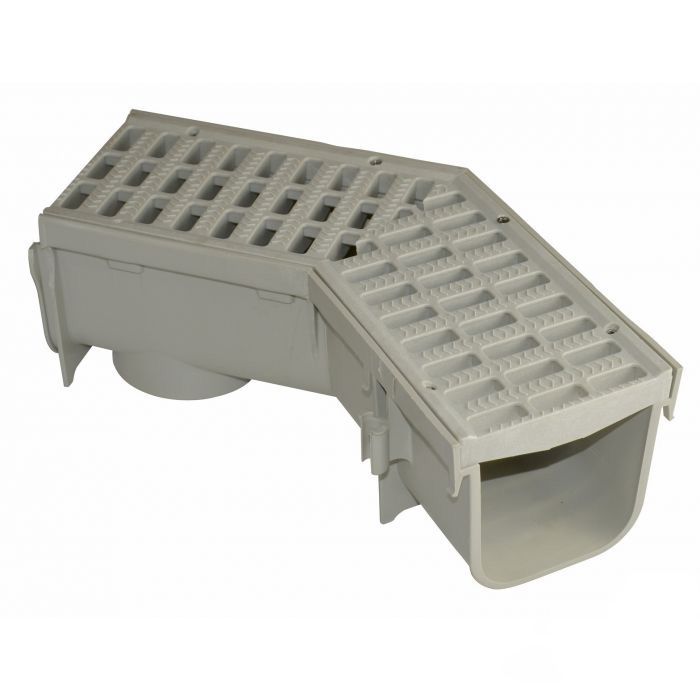

TheNDS 5" Pro Series Deep Profile Grate and Channel Drain 45-Degree Elbow is the ideal solution for all your drainage needs. The 5" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The NDS 5" Pro Series Deep Profile Grate and Channel Drain 45-Degree Elbow is used to connect NDS 5" pro series channel drains at a 45-degree angle for a custom drainage solution. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 5" Pro Series Channel Drain Kit is the perfect solution for all your drainage needs.

Quick Look

  • Compliant with the Americans with Disabilities Act (ADA) standards
  • Material: HDPE (High-Density Polyethylene)
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (Screws included)
  • Fits: NDS 5” Pro Series Channel Part# 800
  • Used to connect NDS 5" pro series channel drains at a 45-degree angle
  • Recommended for medium-duty tire traffic
  • Open Surface Area: 19.32 Sq. Inch per Ft
  • 101.75 GPM per foot
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
