NDS 5" Pro Series Deep Profile Grate and Channel Drain 90-Degree Elbow

$69.51
In stock
SKU
861
  • Buy 2 for $66.03 each and save 5%

Dimensions:WIDTH:16-5/16" x LENGTH:17"


Call in directly to (803)-372-0846 for a personalized quote.

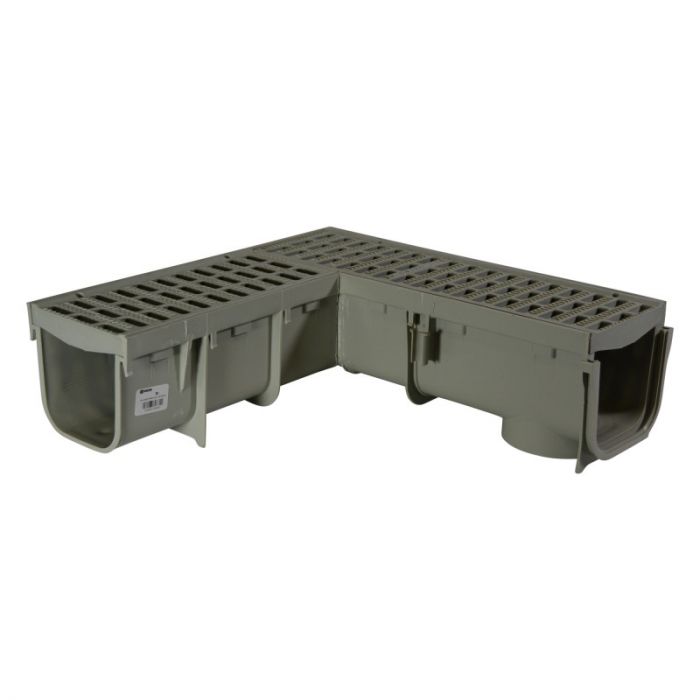

Product Details: NDS 5" Pro Series Deep Profile Grate and Channel Drain 90 - Degree Elbow

The 5" Pro Series Deep Profile Grate and Channel Drain 90 Elbow allows for angles within the Pro Series system, adding dexterity to a flexible product. The interlocking channels provide for customization and easy installation. Create a channel as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections

Quick Look

  • HDPE ( High Density Polyethylene)
  • UV Inhibitors
  • Interlocking Joints
  • Add a 90° turn left or right in your 5 in. Pro series channel drainage system layout
  • Open Surface Area: 23.52 Sq. Inch per Ft.
  • Fits: 5” Pro Series Channel, Part# 800
  • Class B Load Rated (61-175 PSI)
  • Grate Opening: 3/8” x 1-1/4”
  • ADA Compliant
  • Product Class: 25IN
