NDS 5" Pro Series Deep Profile Channel Drain End Cap/End Outlet

$8.36
In stock
SKU
813

For personalized assistance or a customized quote, Call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

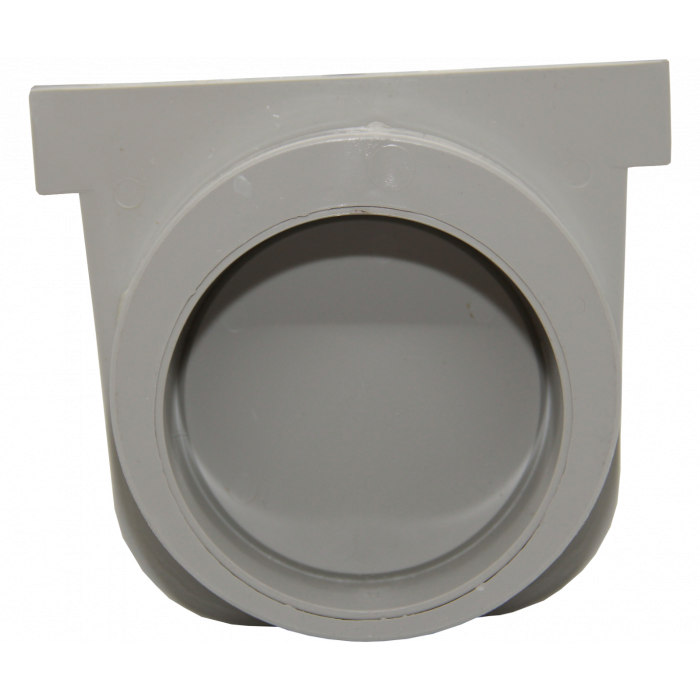

Product Details: NDS 5" Pro Series Channel Drain End Cap/End Outlet

The NDS 5" Pro Series Channel Drain End Cap/End Outlet is the ideal solution for all your drainage needs. The 5" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. The NDS 5" Pro Series Channel Drain End Cap/End Outlet is designed to connect to the end of the 5" Pro Series channel drain #800, to allow 3" & 4" pipe connection. With its advanced design and user-friendly features, the NDS 5" Pro Series Channel Drain End Cap/End Outlet is the perfect solution for all your drainage needs.

Quick Look

  • Compliant with the Americans with Disabilities Act (ADA) standards
  • Material: UV Protected High-Density Polyethylene (HDPE)
  • Designed to connect to the end of the 5" pro series channel drain #800, to allow 3" & 4" pipe connection
  • Use with 5 in. Pro Series Channel Drains, Elbows, and Qwik-Turn™ Deep Radius Couplings to customize your drainage system layout
  • UV Inhibitors To Prevent Fading Or Cracking
  • Works as an end cap or end outlet; use intact to use as an end cap, use knockout to create outlet
  • Create a water-tight connection using solvent-weld PVC glue
  • Fits 3" Sewer & Drain Pipe and 4" Sewer & Drain Fittings
  • Load Rating: Class B (61-175 PSI)
Shop the entire line of NDS 5" Pro Series Drains Products
NDS 5" Pro Series FAQS

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 5" Pro Series Channel Drain End Cap/End Outlet Technical Specifications

Installation Instructions

NDS Channel Drain Installation Guide
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling End Outlet
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling Bottom Outlet Connection
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Wood Member Suspension
More Information
Brand NDS
Part Number 813
Color Gray
Width 5"
Length 4.75
