NDS 5" Pro Series Channel Drain Kit

$47.12
In stock
SKU
864

Dimensions: 39.5 x 5-1/2"

Includes:(Includes #814-Grates ( 2qty.) , #800-Channel (1qty.), #813-End Outlet (1qty.), and #812-End Cap (1qty.)

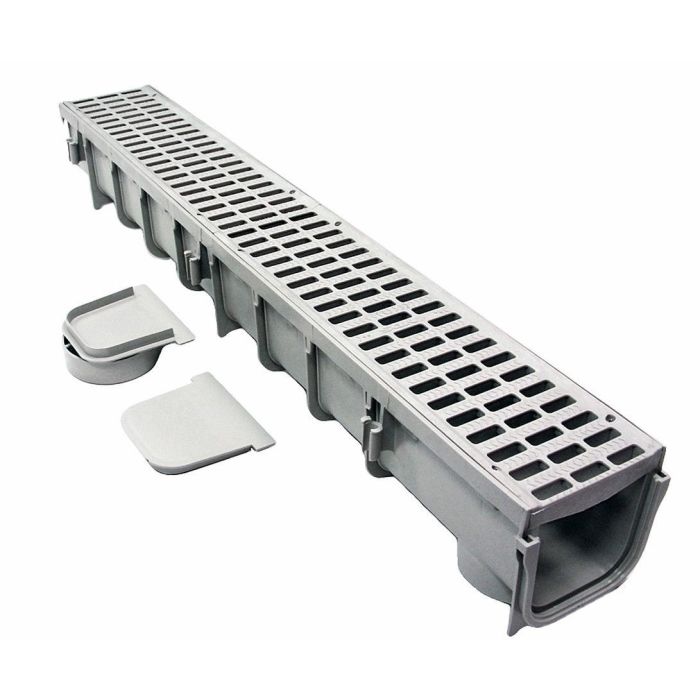

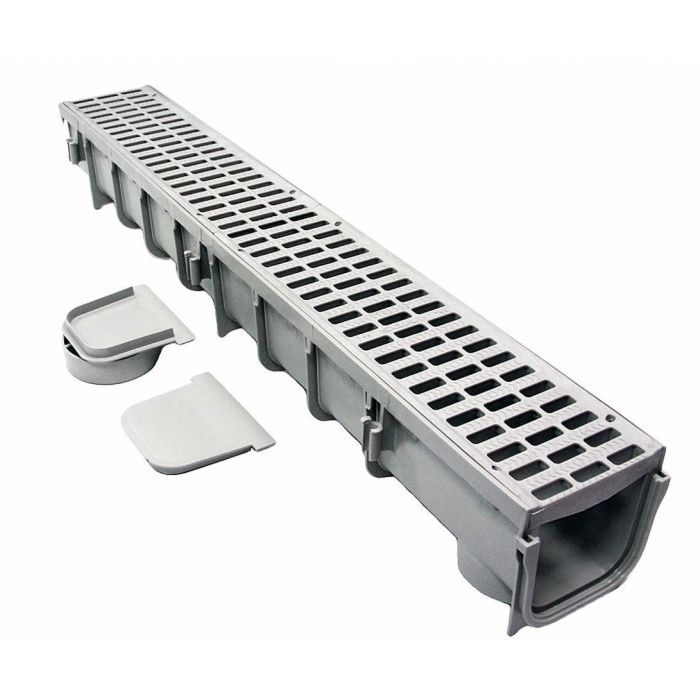

Product Details: NDS 5" Pro Series Channel Kit

The new and improved NDS 5” Pro Series Channel Drain Kit is the most durable, feature-rich, and easy to install modular drainage system in its class. Each channel is made from injection-molded polypropylene with extended side ribs for increased channel strength and UV inhibitors to prevent fading and cracking. Included slotted grates are light-gray HDPE for up to Class B loading and are ADA-compliant. Each Channel snaps end-to-end quickly and easily with robust male-to-female locking clips for long channel runs. Cut guides allow the channel to be shortened by 4-inch increments for smaller interlocking sections. Included end cap and end outlet combined with new integrated second-bottom outlet and side-outlet knockouts provide 8 outlet options per channel section for increased design and installation flexibility. The new side outlets now allow 90-degree, tee, and cross configurations to be made in the field without specialty accessories. New strengthened #4 rebar clips along the channel sides allow for quicker and easier installation and increased system strength. Popular applications including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. Compatible with the patented NDS Pro Series Qwik-Turn Radius Coupling to allow for curving layouts with up to 6 degrees of deflection between couplings and channels – NDS is the only drainage manufacturer to offer this incredible ability! The 5" pro series channel kit comes complete with channel, grates, screws, end caps/outlet, and installation instructions. Along the channels, outlets can be attached anywhere, and the system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes.

Quick Look

  • Includes 40" channel drain, 2 grates, 1 end cap, 1 end outlet
  • Interlocking channel design for a secure, tight fit
  • End outlet fits 3" Sewer & Drain Pipe and 4" Sewer & Drain Fittings
  • Material: Channel (Polyolefin) Grates (HDPE)
  • Knockout bottom outlets fits 3" & 4" Sewer & Drain Fittings
  • Grate Opening: 3/8”x 1-1/4”
  • Channel can be as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections
  • Recommended for medium-duty tire traffic
  • Made with UV and chemical inhibitors to prevent fading and cracking
  • Open Surface Area: 23.52 square inches per foot
  • 71.95 GPM per foot
  • Load Rating: Class B (61-175 PSI)
Shop the entire line of NDS 5" Pro Series Drains Products

Additional Resources

NDS 5 Inch Pro Series Drain Kit - Technical Specifications

Installation Instructions

NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
More Information
Part Number 864
Length 39.5"
Width 5-1/2"
Height 4-3/4"
Weight 5.6
Color Grey
