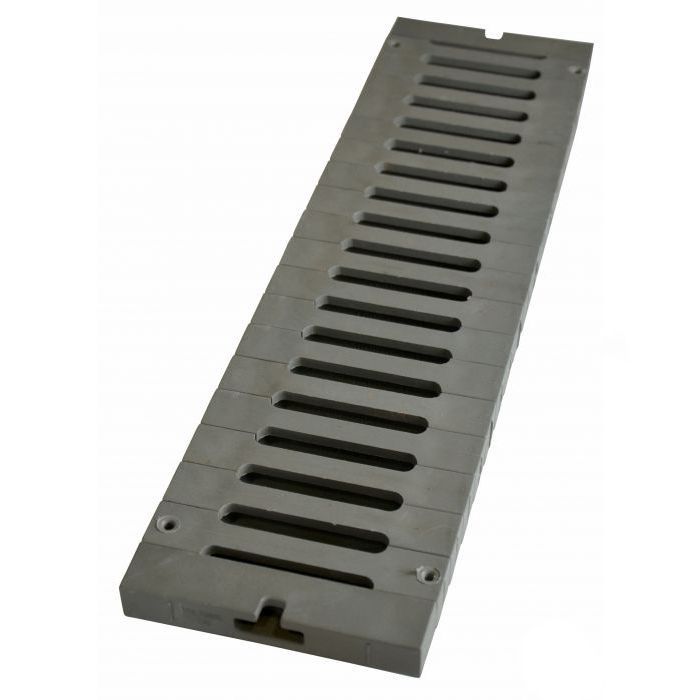

NDS 5" Pro Series Channel Grate, Heavy Traffic

$105.43
In stock
SKU
828
  • Buy 10 for $100.16 each and save 5%

Dimensions: L:19-11/16" x W:5-1/2" x H:2-5/8"


Fits: NDS 5" Pro Series Channel, Part #820 ( takes 1 grate) and Part #800 ( takes 2 grates)


Call in directly to (803)-372-0846 for a personalized quote.

Product Details: NDS 5" Pro Series Channel Grate, Heavy Traffic

NDS grates are a proven alternative to traditional concrete drains. NDS grates are constructed with UV inhibitors which are used to prevent fading and cracking from the sun, chemical-resistant, rustproof and maintenance-free, lightweight, and easy to install. NDS has a full line of drainage products, fittings, and accessories available. The 5" Pro Series channel grate by NDS is part of their 5" Pro Series trench drain system. Each grate is 19.625" in length and 5.25" in width; two grates are needed for each section of the NDS Pro Series channel drain. NDS recommends that each grate be affixed to the channel with four stainless steel screws to prevent movement. Installed properly, these grates are rated for Class C loads of 175-325PSI, making them an affordable alternative to expensive metal grates. Pro Series trench drain covers are an affordable way to enhance the aesthetic of your hardscape

Quick Look

  • UV Inhibitors
  • 75.71 GPM
  • Material: High Impact Glass Reinforced Nylon
  • Grate Opening: 1/2” x 3”
  • ADA Compliant
  • H-20 Rated
  • Recommended for heavy-duty pneumatic tire forklifts and tractor trailers at speeds less than 20 mph
  • Product Class: 25IN
  • Fits: 5” Pro Series Channel, Part# 820 ( takes 1 grate) and Part# 800 ( takes 2 grates)
  • Open Surface Area: 17.50sq. Inch per Ft.
  • Load Rating: Class C (175-325psi)
Shop the entire line of NDS 5" Pro Series Drains Products
NDS 5" Pro Series Additional Resources

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 5" Pro Series Channel Grate, Heavy Traffic Technical Specifications
NDS Drainage Catalog
NDS 5" Pro Series Profile Channel Drain Technical Specifications
NDS 5" Pro Series Shallow Profile Channel Drain Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Channel Drain Installation Guide
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling End Outlet
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling Bottom Outlet Connection
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Wood Member Suspension
More Information
Part Number 828
Color Grey
Length 19.5"
Width 5.19"
Grate Opening 9/16"x 3-9/16"
Open Surface Area 22.90 Square Inches Per Foot
Gallons Per Minute 48.70 GPM
