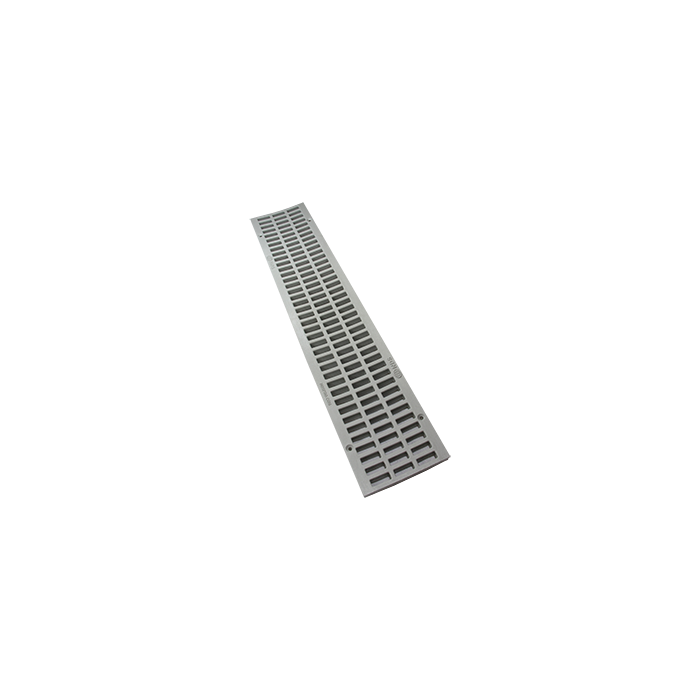

NDS 3" Pro Series Channel Grate

$10.52
In stock
SKU
714
  • Buy 16 for $9.99 each and save 5%

Dimensions: Width: 3-7/8" x Length: 19-11/15"" x Height: 1/2"


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 3" Pro Series Channel Grate

The NDS 3" Pro Series Channel Grate is the ideal solution for all your drainage needs. The 3" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, pool decks, sports facilities, and more. The drainage system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 3" Pro Series Channel Grates is the perfect solution for all your drainage needs.

Quick Look

  • Compliant with the Americans with Disabilities Act (ADA) standards
  • Material: HDPE (High-Density Polyethylene)
  • Dimensions: 19-11/15" LENGTH x 3-7/8" WIDTH x 1/2" HEIGHT
  • Channel Grates can be screwed to the channel using Stainless Steel Screws FH H 8x1” screws (4 per channel grate, screws sold separately)
  • Color: Light Gray
  • Fits: 3” Pro Series Channel, Part# 710 (Two Channel Grates Per Channel Drain)
  • Grate Opening: 5/16”X 7/8”
  • Channel grates can be reduced to any lengths
  • Recommended for medium-duty tire traffic
  • Open Surface Area: 23.63 Sq. Inches Per Foot
  • 102.23 GPM per foot
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)

Additional Resources

How To Install A NDS Pro Series Channel Drain
NDS 3" Pro Series Channel Grate Technical Specifications

Installation Instructions

NDS 3" Pro Series Channel Drain Installation Detail Landscape Traffic 4" Concrete Abutment
NDS 3" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Brick Rebar Suspension
NDS 3" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Pavers Brick Rebar Suspension
NDS 3" Pro Series Channel Drain Plumbing Connection Bottom Outlet
NDS 3" Pro Series Channel Drain Plumbing Connection End Outlet
NDS Channel Drain Installation Guide
More Information
Part Number 714
Color Grey
Length 19-11/15"
Width 3-7/8"
Grate Opening 5/16" x 7/8"
Open Surface Area 23.63
Gallons Per Minute 102.23 GPM
