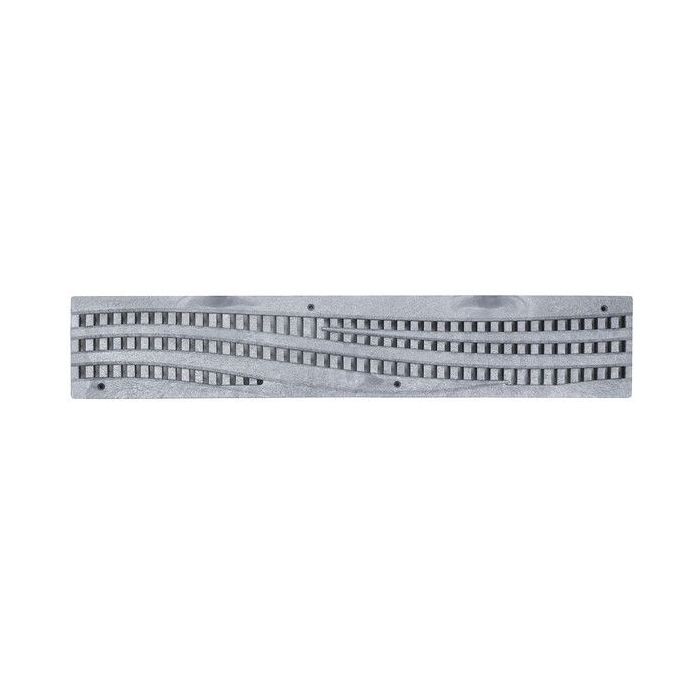

NDS Spee-D Channel Grate, Decorative Wave

$32.66
In stock
SKU
NDS 253

Dimensions:Length: 24" x Width: 4.42" x Height: 0.925"


Color: Black (#253), Gray (#253GY), Green (#253GR), Sand (#253S)


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Spee-D Channel Grate, Decorative Wave

The NDS Spee-D Channel system is a lightweight, easy-to-install alternative to traditional concrete drainage channels. It features a larger surface area for drainage and is suitable for both residential and non-residential applications such as swimming pools, patios, and light vehicular traffic areas. The NDS Spee-D Channel Grate - Decorative Wave comes in four colors: Black (#253), Gray (#253GY), Green (#253GR), and Sand (#253S). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today! NDS Spee-D Series

Quick Look

  • Install with Four FH #8 x 1" screws, per grate (Sold Separately)
  • ADA Compliant
  • Colors: Black (#253), Gray (#253GY), Green (#253GR), Sand (#253S)
  • Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
  • Dimensions: 24" LENGTH x 4.420" WIDTH x 3/4" Height
  • Will accommodate 47.60 gallons per minute 1/2" of head
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • UV Inhibitors
  • Material: UV Protected High-Density Polyethylene (HDPE)
  • Screws Sold Separately
Shop the entire line of NDS Spee-D Channel Products
NDS Spee-D Channel FAQS and Resources

Additional Resources

NDS Spee-D Channel Grate, Decorative Wave Technical Specifications
How To Install A Spee-D Channel Drain
NDS Spee-D Channel Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Spee-D Channel Drain Light Vehicular Traffic Installation - Pavers
NDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
More Information
Brand NDS
Part Number NDS 253
Length 24"
Width 4.42"
Grate Opening .25"
Open Surface Area 15.56 square inches
Gallons Per Minute 47.60 GPM
