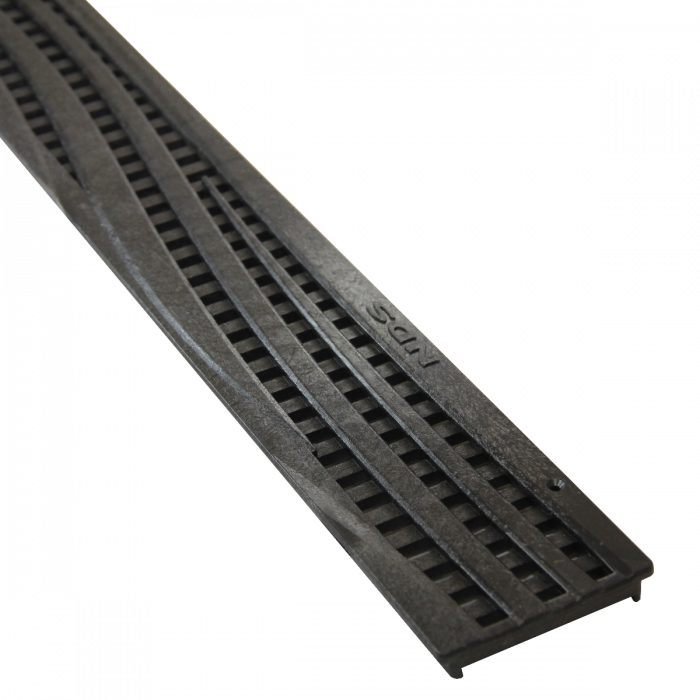

NDS Mini Channel Decorative Wave Grate

As low as $23.69
In stock
SKU
NDS 555

Dimensions: L:36" x W:3.08"


Color: #555 (Black), #555GY (Gray), #555GR (Green), #555S (Sand)


Call in directly to (803)-372-0846 for a personalized quote.

Product Details: NDS Mini Channel Decorative Wave Grate

Designed to meet today's demand for products that are as beautiful as they are functional, NDS decorative grates feature consumer-tested designs and offer a range of colors and materials ideal for any application or setting. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. Part of the NDS Mini Channel Series.

Quick Look

  • UV Inhibitors To Prevent Fading Or Cracking
  • Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (screws sold separately)
  • NDS recommend a 1/8” gap be left between grates during installation to allow for expansion of the grates
  • High Density Polyethylene (HDPE) Grate
  • Dimensions: 36" x 3.08"
  • ADA Compliant
  • Use With NDS Mini Channe Drain
  • 49.93 Gallons Per Minute
  • 16.32 In/Sqr Open Space
  • Class B Load Rated (61-175 PSI)
Shop the entire line of NDS Mini Channel Products
NDS Mini Channel FAQS

Additional Resources

NDS Mini Channel Decorative Wave Grate : Technical Specifications
Solution To Stormwaters
How To Install A NDS Mini Channel Drain
NDS Mini Channel CAD Details : Pool Deck Installation
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS Mini Channel CAD Details : Light Vehicular Traffic Installation
NDS Mini Channel CAD Details : Light Vehicular Traffic Installation
NDS Mini Channel CAD Details : Typical Pedestrian Traffic Installation Installation
NDS Channel Drain Installation Guide
More Information
Part Number NDS 555
Length 36"
Width 3.08"
Grate Opening 17.20 sq. inch open space
Open Surface Area 16.32
Gallons Per Minute 49.93 GPM
