US Foundry 109-5624 Round Inlet Frame & Grate (30" Clear Opening)
Price available on request
SKU
USF-109-5624
Current US Foundry 109-5624 gray iron round frame-and-grate combination with a clear opening of 30" and a grate measuring 32". Quote to confirm fit and availability.

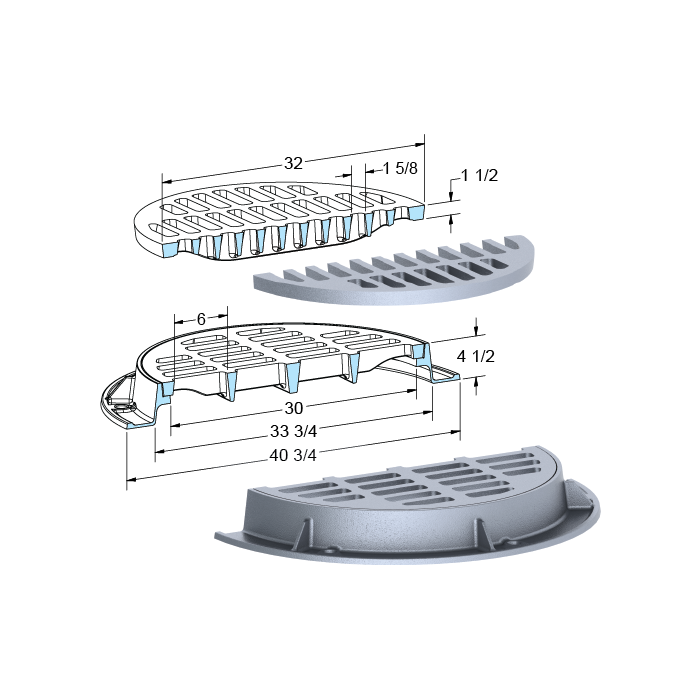

The US Foundry 109-5624 round inlet frame-and-grate combination provides a clear opening of 30", a grate diameter of 32", and a seat depth of 1-1/2". The current manufacturer record identifies gray iron construction and lists H-20 as the highest load rating.
Current frame geometry includes a frame opening diameter of 33.75", a frame flange diameter of 40-3/4", a frame height of 4-1/2", and a weir perimeter of 8.3 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 109-5624
- Clear opening diameter 30"; grate diameter 32"
- Frame opening diameter 33.75"
- Frame flange diameter 40-3/4"
- Frame height 4-1/2"; seat depth 1-1/2"; Gray Iron construction
- Highest load rating H-20
- Weir perimeter 8.3 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 109-5624 |
| Length | 40-3/4" |
| Width | 40-3/4" |
| Height | 4-1/2" |
| Material | Gray Iron |
| Ratings and Standards | Highest load rating: H-20 |
| Type | Round Inlet Frame & Grate |
| Size | 30" Clear Opening |
