US Foundry 117-5609 Round Inlet Frame & Grate (24" Clear Opening)
Price available on request
SKU
USF-117-5609
Current US Foundry 117-5609 gray iron round frame-and-grate combination with a clear opening of 24" and a grate measuring 25-1/2". Quote to confirm fit and availability.

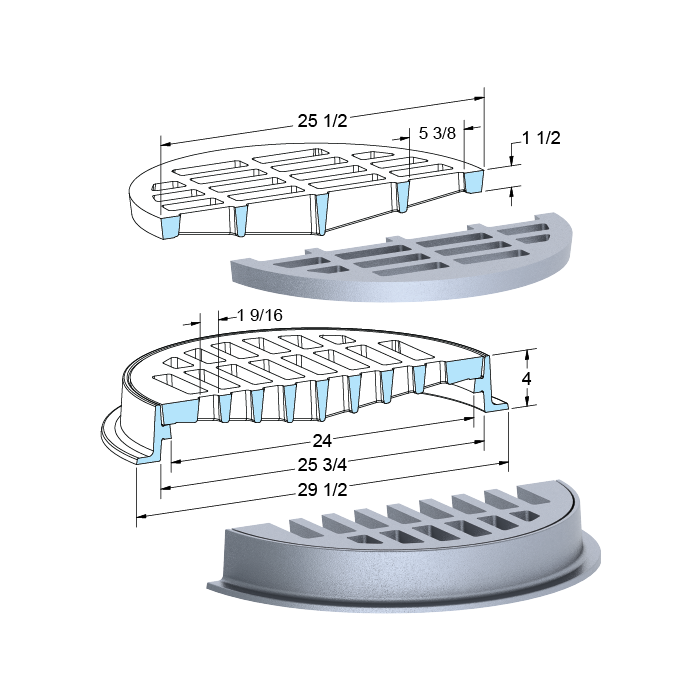

The US Foundry 117-5609 round inlet frame-and-grate combination provides a clear opening of 24", a grate diameter of 25-1/2", and a seat depth of 1-1/2". The current manufacturer record identifies gray iron construction but does not publish a load rating; confirm load requirements when quoting.
Current frame geometry includes a frame opening diameter of 25.75", a frame flange diameter of 29-1/2", a frame height of 4", and a weir perimeter of 6.6 ft. Request a quote through Drainage Connect to confirm fit, project requirements, and current availability.
- Current catalog number 117-5609
- Clear opening diameter 24"; grate diameter 25-1/2"
- Frame opening diameter 25.75"
- Frame flange diameter 29-1/2"
- Frame height 4"; seat depth 1-1/2"; Gray Iron construction
- Load rating requires project confirmation
- Weir perimeter 6.6 ft
Specification note: Specifications are limited to the exact current manufacturer record. Drainage Connect will confirm fit, configuration, and availability when quoting.
| Brand | US Foundry |
|---|---|
| Part Number | 117-5609 |
| Length | 29-1/2" |
| Width | 29-1/2" |
| Height | 4" |
| Material | Gray Iron |
| Type | Round Inlet Frame & Grate |
| Size | 24" Clear Opening |
